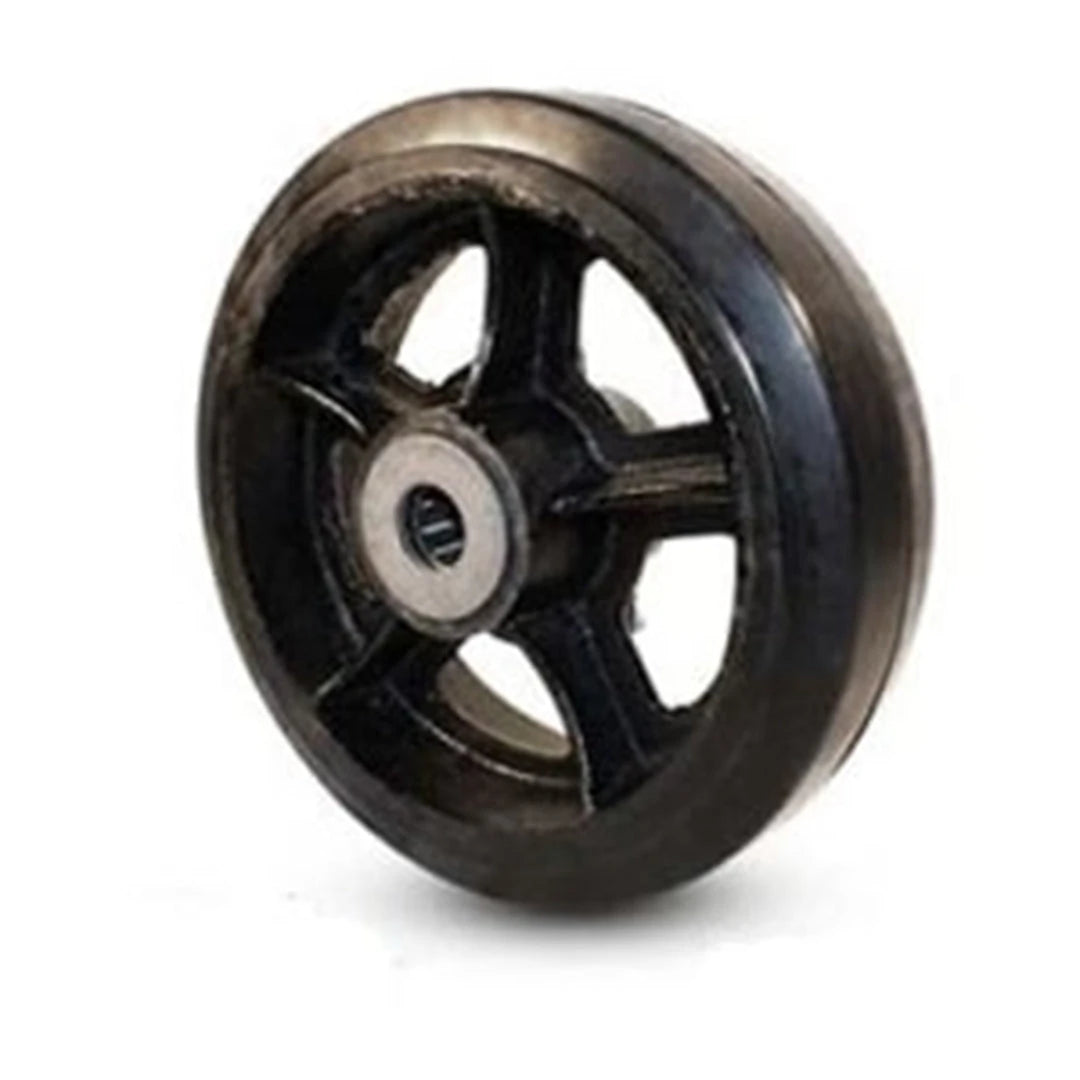

Cast Iron Wheels

Cast iron wheels support loads up to 40,000 lbs with exceptional durability in foundries, steel mills, and heavy manufacturing where extreme capacity is non-negotiable.

Filter products
The highest price is $211.58
$
$
Clear all

9 Products

Maximum Load Capacity

Cast iron caster wheels are the heaviest-duty replacement wheels available, engineered for the most demanding load-bearing applications in industrial manufacturing. With individual wheel capacities reaching up to 40,000 lbs in the largest sizes, cast iron wheels are the standard specification for foundries, steel mills, die handling operations, heavy press shops, mold transport, and any facility that moves loads measured in tons rather than hundreds of pounds.

Frequently Asked Questions About Cast Iron Wheels

Cast iron replacement wheels are available with load ratings up to 40,000 lbs per wheel in the largest diameters. Standard industrial sizes commonly range from 1,000 to 15,000 lbs per wheel. Always verify that your caster fork and mounting hardware match the wheel's load rating.

Cast iron wheels handle continuous operating temperatures up to approximately 800 degrees Fahrenheit, with some formulations rated even higher. The bearing type and lubricant are typically the limiting factors. For the highest temperature applications, use high-temperature grease or dry sintered bronze bushings.

Cast iron wheels will gradually wear, crack, and damage concrete floors under extreme loads, especially during turns and over floor joints. In foundries and heavy manufacturing facilities, this wear is generally accepted as part of the operating environment. For floor-sensitive areas, consider polyurethane-on-iron wheels that add a protective tread layer.

Cast iron wheels offer higher load capacities in larger sizes and better vibration damping due to the material's natural damping properties. Steel wheels are typically lighter for a given size, resist impact damage better, and are available in a wider range of smaller sizes. For extreme loads above 10,000 lbs per wheel, cast iron is usually the preferred choice.

Cast Iron Replacement Wheels: Extreme Load Capacity for the Heaviest Operations

Cast iron offers inherent advantages that no other wheel material can replicate at extreme loads. Its exceptional compressive strength prevents deformation under static loads that would crush polymer or composite wheels. It maintains dimensional stability at elevated temperatures, performing reliably in environments up to 800 degrees Fahrenheit and beyond, making it suitable for handling freshly cast metal, operating near furnaces, and rolling through heat treatment zones. Cast iron also resists abrasion from metal chips, scale, and debris commonly found on foundry and mill floors.

Cast iron replacement wheels are available in diameters from 4 inches to 16 inches and larger, with tread widths scaled to the load capacity requirements. Bearing options include roller bearings for heavy loads and high temperatures, and plain bore for maximum simplicity. These wheels are designed to mount directly into standard heavy-duty caster forks using common axle sizes. When specifying cast iron replacement wheels, ensure your caster fork, mounting plate, and supporting structure are rated for the same loads as the wheels themselves.
