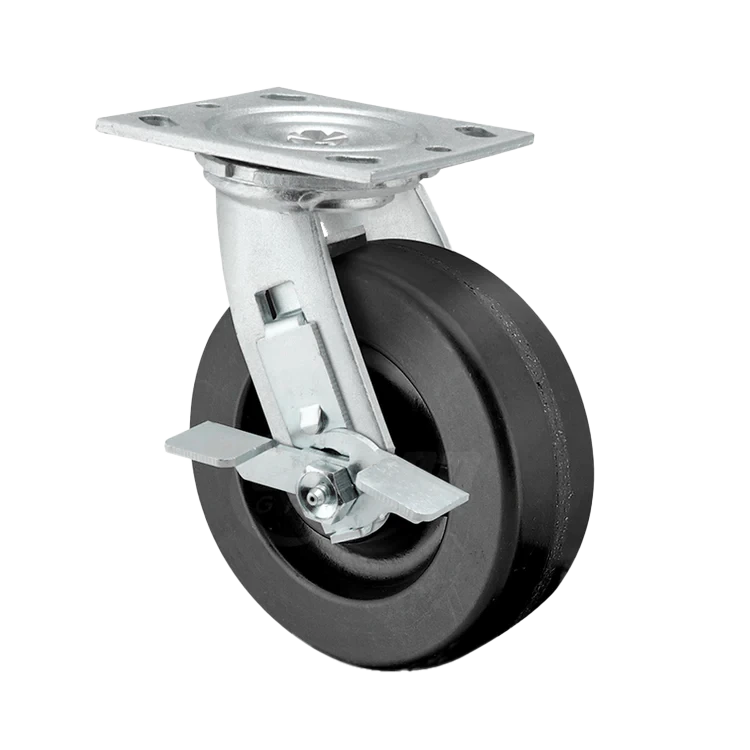

Phenolic Casters

Phenolic resin casters provide affordable heat resistance up to 300F, making them a standard choice for bakeries, commercial ovens, and dry industrial environments.

Filter products
The highest price is $227.90
$
$
Clear all

154 Products

Resin Construction and Heat Rating

Phenolic casters offer a proven combination of heat resistance and affordability that makes them a staple in bakeries, commercial kitchens, oven operations, and dry manufacturing environments. Constructed from layers of canvas, linen, or paper impregnated with phenolic resin and cured under high pressure, these wheels tolerate continuous operating temperatures up to 300 degrees F without softening, deforming, or losing load capacity. Individual casters support 200 to 2,500 lbs, delivering strong performance at a lower cost per unit than nylon, polyurethane, or metal alternatives.

Frequently Asked Questions About Phenolic Casters

Phenolic casters handle continuous operating temperatures up to 300 degrees F, making them one of the most heat-resistant polymer wheel options available. They are commonly used around ovens, proofing cabinets, curing ovens, and other heated equipment. For temperatures above 300 degrees F, metal (steel or cast iron) casters are required.

Phenolic casters in our catalog range from 200 to 2,500 lbs per caster. Their rigid, high-density construction provides strong compressive strength relative to cost. For loads exceeding 2,500 lbs per caster, nylon or metal wheels are recommended.

Phenolic casters are not recommended for wet, washdown, or high-humidity environments. Phenolic resin absorbs moisture over time, which leads to swelling, softening, and potential delamination of the wheel. For wet or sanitary environments, nylon or polypropylene casters maintain their integrity and are the preferred alternatives.

Phenolic casters are more economical and tolerate higher sustained dry heat (up to 300 degrees F vs. 250 degrees F for nylon). Nylon casters offer superior moisture resistance, a wider overall temperature range (down to -40 degrees F), higher maximum load capacities, and better chemical resistance. Choose phenolic for dry heat applications on a budget; choose nylon when moisture, cold, or chemical exposure is a factor.

Phenolic Casters: Economical Heat Resistance for Dry Industrial Environments

The rigid construction of phenolic wheels provides low rolling resistance under load, meaning carts and equipment roll easily once set in motion. Phenolic is also electrically non-conductive and resistant to many oils, solvents, and common industrial chemicals in dry contact scenarios. These properties make phenolic casters well suited for oven racks, bakery trolleys, dry-process assembly lines, textile operations, and general industrial material handling where budgets are tight and heat tolerance matters.

The key limitation of phenolic is moisture sensitivity. Phenolic resin is hygroscopic, meaning it absorbs water over time, which can cause swelling, softening, and eventual delamination of the wheel layers. For wet, washdown, or high-humidity environments, nylon or polypropylene wheels are better choices. In dry conditions, phenolic casters deliver reliable, heat-tolerant service at an economical price point. Browse by load rating, wheel size, and mounting type to find the right phenolic casters for your operation.
