MFG PART: ER4X2TPRB

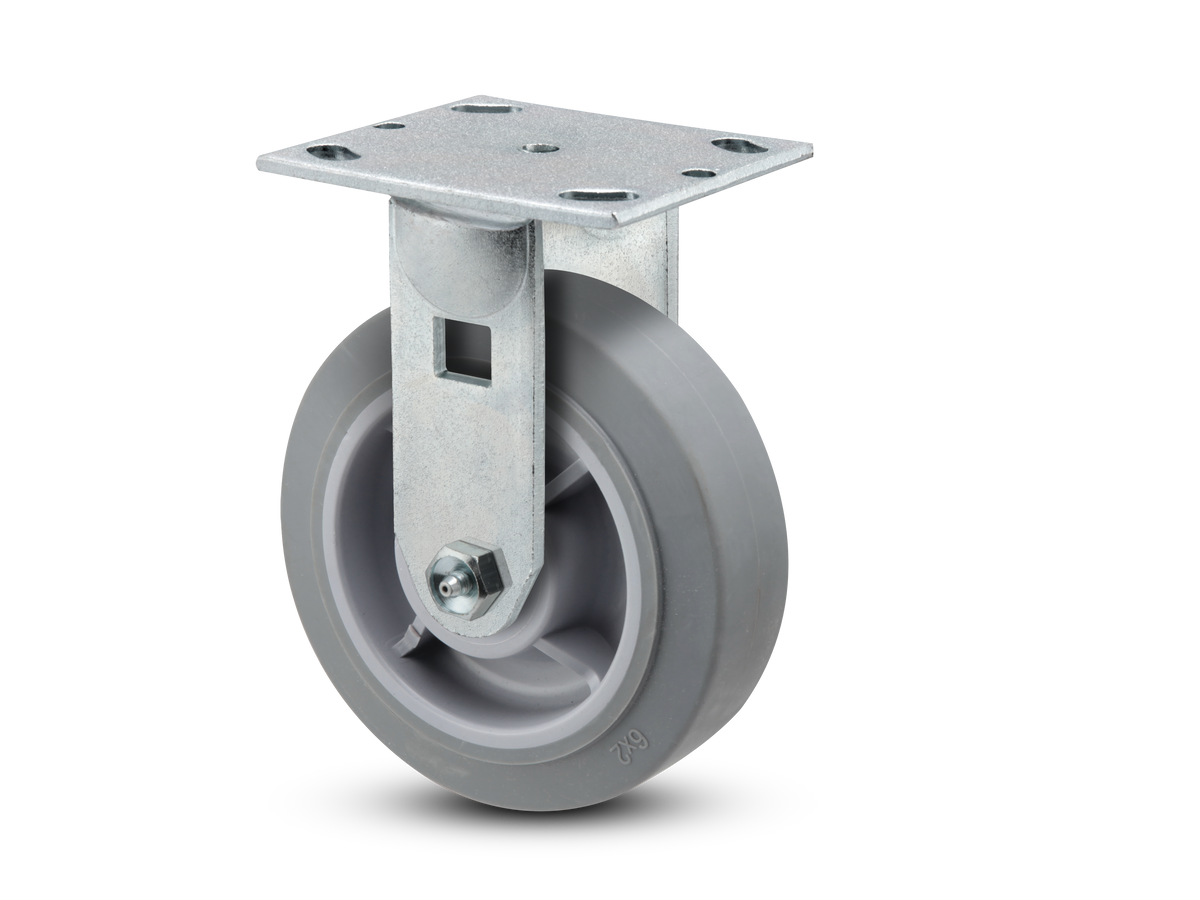

E-line Rigid 4"x2" Rubber USA-Made TPR Wheel 4"x4.5" Plate Caster; Part# ER4X2TPRB
300 lbper caster
Regular Price
$22.84
Rubber Wheel
4" x 2" Wide Wheel
300 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
QuickShip program: most items ship same or next business day
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 90(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Pemco E-line |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - ER4X2TPRB
Set this 4-inch E-line rigid on the back corners of a towed cart that runs straight at speed, the fixed TPR caster whose precision ball bearing keeps the rear rolling cool and true behind front swivels.
A rigid caster tracks straight, so two of these anchor the rear of a towed cart while front swivels steer, and the precision ball bearing runs cool and true under a sustained pull where a plain bore would heat. The 4 by 4-1/2 top plate bolts to a flat deck, the 4-inch diameter keeps the rear low, and the wider 2-inch Pemco TPR rubber on a polypropylene core stays soft and quiet with no marks.
Ideal applications
- Back corners of towed carts that run straight at speed
- Sustained pulls where the rear bore must stay cool
- Bolt-on plate decks in the E-line load class
Skip the TPR wheel if the cart pushes the top of the E-line range or works near heat over 180°F; a TPU polyurethane or cast iron wheel handles it where soft rubber gives.
Pairs with: a matching E-line swivel up front for a towed cart.
Wrong fit? Want a brake, or a quieter wash bore? See the ER4X2TPRBTBK tread lock and the ER4X2TPRD Delrin.
Also in this family: the 5-inch ER5X2TPRB, or the full Pemco collection.
