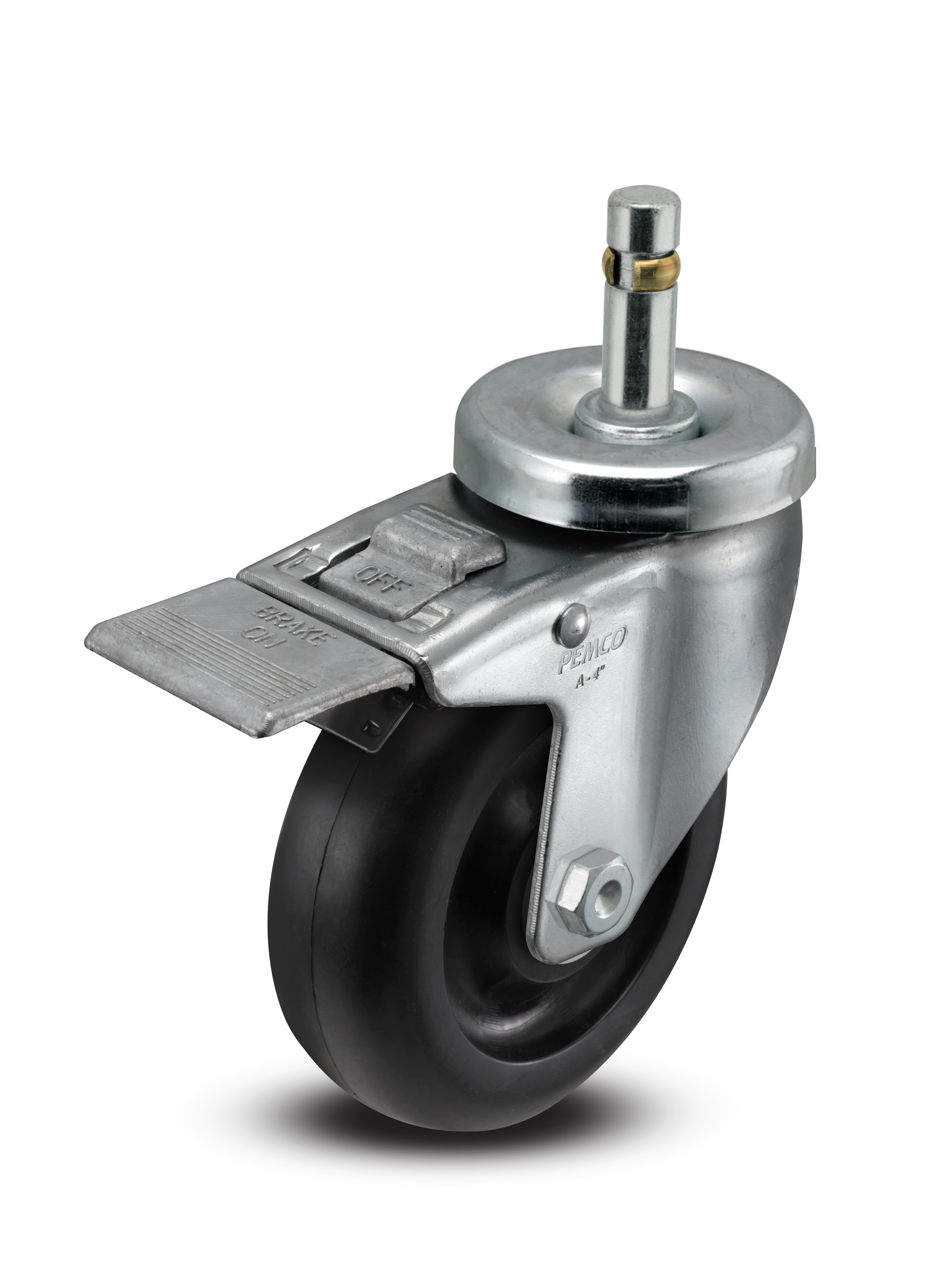

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Grip Ring Stem and Total Lock Brake - Part# AS40G1PODTL
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Grip Ring |
| Fastening Size | 7/16" x 1-3/8" |
| Swivel Radius | 4.4375 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Total Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Pemco A-Line 1 1/4 Inch Wide Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - AS40G1PODTL
Use this 4-inch A-line swivel on a press-in tube leg where the parked cart cannot be allowed to roll or pivot, and a side brake that leaves the swivel free is not enough.
The total lock pins the wheel and the swivel head together in one pedal action, so a loaded cart cannot creep or swing once it is set, which a wheel-only side brake cannot guarantee. The 7/16-inch grip-ring stem presses into a round leg by hand, the wheel is a hard polyolefin on a polypropylene core that resists moisture from -45 to 180°F, and the Delrin plain bearing runs maintenance-free.
Ideal applications
- Press-in tube legs that must lock against roll and pivot
- Carts parked on a grade where a swivel would swing
- Grip-ring corners on a hard polyolefin total lock
If the cart only needs the wheel stopped while the swivel stays free, the side-brake AS40G1PODSB costs less.
Pairs with: plain grip-ring A-line swivels on the rolling corners, these total-lock units opposite.
Wrong fit? Need a non-marking wheel or a threaded mount? See the grey TPU total-lock AS40G1TPUTL and the threaded total-lock AS40T2PODTL.
Also in this family: the hollow-kingpin total-lock AS40H1PODTL, or the full Pemco collection.
