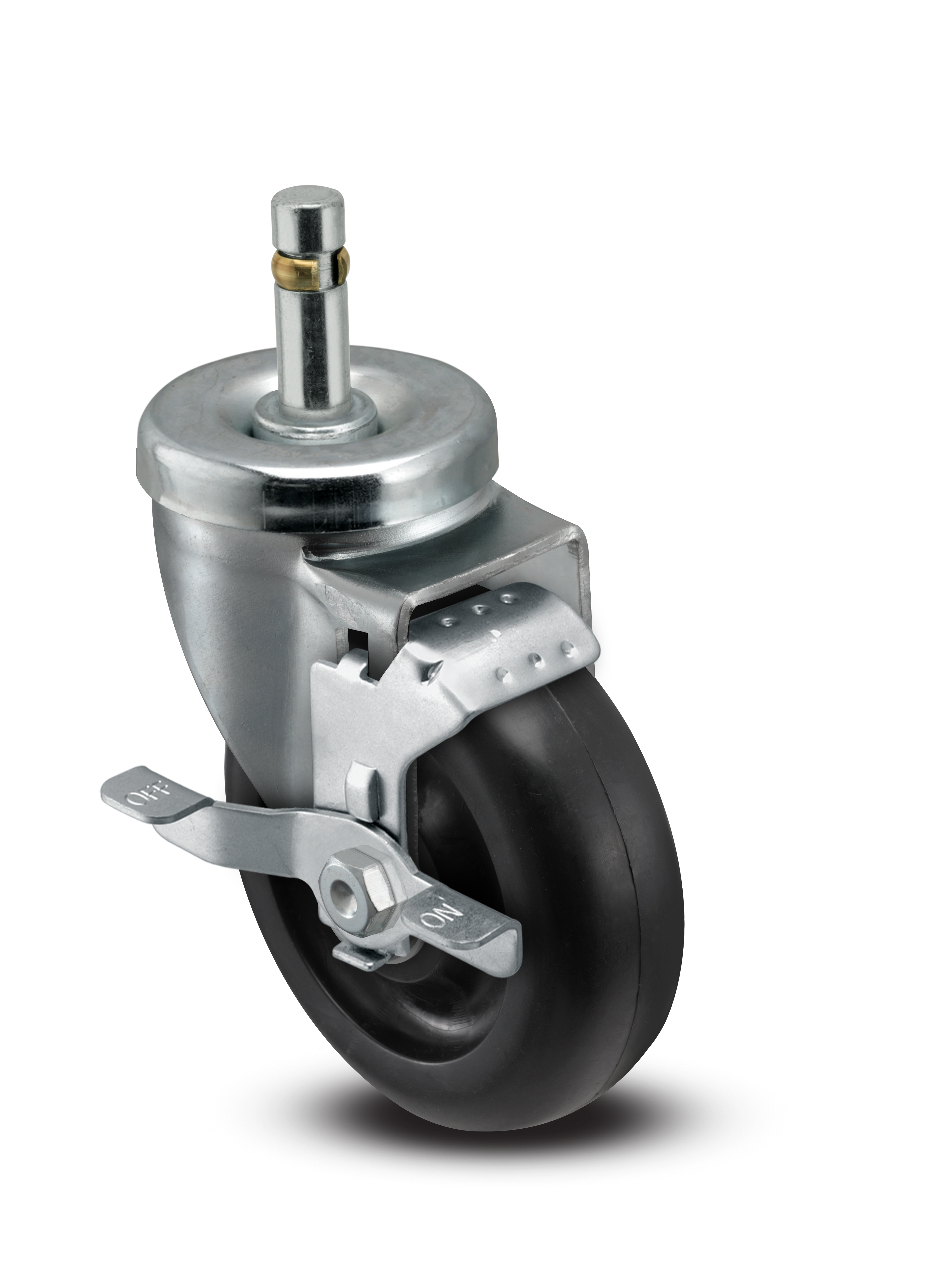

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Grip Ring Stem and Side Locking Brake - Part# AS40G1PODSB
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Grip Ring |
| Fastening Size | 7/16" x 1-3/8" |
| Swivel Radius | 3.75 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Side Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Pemco A-Line 1 1/4 Inch Wide Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - AS40G1PODSB
Choose this 4-inch A-line swivel for a press-in tube leg on a cart that rolls and then has to stay put on a sloped or busy floor.
The 7/16-inch grip-ring stem seats into a round leg by hand, and a side brake adds a lever that presses a shoe on the wheel to stop it rolling once the cart is parked. The wheel is a hard polyolefin on a polypropylene core, a black tread that rolls easy and resists moisture from -45 to 180°F, and the Delrin plain bearing runs maintenance-free. It is the economical braked corner of the A-line.
Ideal applications
- Press-in tube legs on carts that park on a grade or in traffic
- Economical braked corners on stockroom and shop carts
- Hard polyolefin tread held still by a side brake, sealed floor
If the corner only rolls, the plain AS40G1POD drops the brake and the cost.
Pairs with: plain grip-ring A-line swivels on the rolling corners, these braked units diagonally opposite.
Wrong fit? Need a total lock or a non-marking wheel? See the total-lock AS40G1PODTL and the grey TPU side-brake AS40G1TPUSB.
Also in this family: the top-plate side-brake AS40P1PODSB, or the full Pemco collection.
