MFG PART: 410PY08501SFBB
8"x3" Polyurethane on Cast Iron Swivel Caster w/ Face Brake (FBB) - 410PY08501SFBB
2500 lbper caster
Regular Price
$375.55
Polyurethane Wheel
8" x 3" Wide Wheel
2500 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

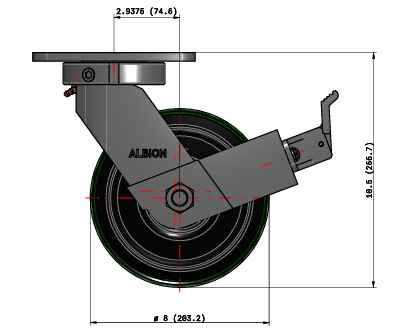

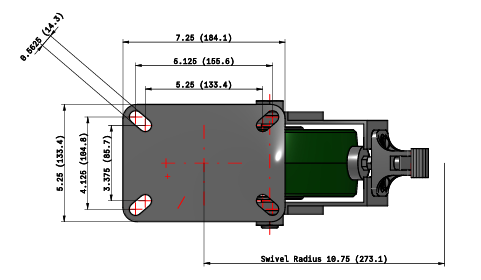

Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 3" |
| Mount Height | 10-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 5-1/4" x 7-1/4" |
| Bolt Hole Spacing | 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" |
| Mounting Bolt Size | 1/2" |
Load & Performance
| Load Capacity | 2500 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Green |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 410 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 410PY08501SFBB
Set this 8-inch green polyurethane-on-iron swivel with a face brake on the toughest heavy manual cart corner that workers push and steer, then park and hold.
A face brake presses a shoe against the wheel to stop it, holding a heavy hand-pushed cart on its spot. The 410 carries up to 5,400 pounds across the series, the green polyurethane on a cast iron core pairs high capacity with a non-marking, floor-friendly tread, the roller bearing is built for the heaviest manual loads, and at 8 inches it clears joints while the kingpinless welded raceway takes the shock without a central kingpin to fail. It has a wide 3-inch tread, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.
Ideal applications
- 8-inch braked green PU-roller swivel parking the toughest manual cart
- Face brake holding the 8-inch green non-marking roller-bearing wheel
- Kingpinless floor-friendly swivel clearing joints then locking
For a corner that only needs to steer, the plain 410PY08501S drops the brake.
Pairs with: plain 410PY08501S swivels on the rolling corners and this braked caster on a parking corner.
Wrong fit? Only need a roll or a larger wheel? See the plain 410PY08501S and the 10-inch green PY braked 410PY10501SFBB.
Also in this family: the 6-inch green PY braked 410PY06501SFBB, or the full Albion collection.
