MFG PART: 410PY08501S

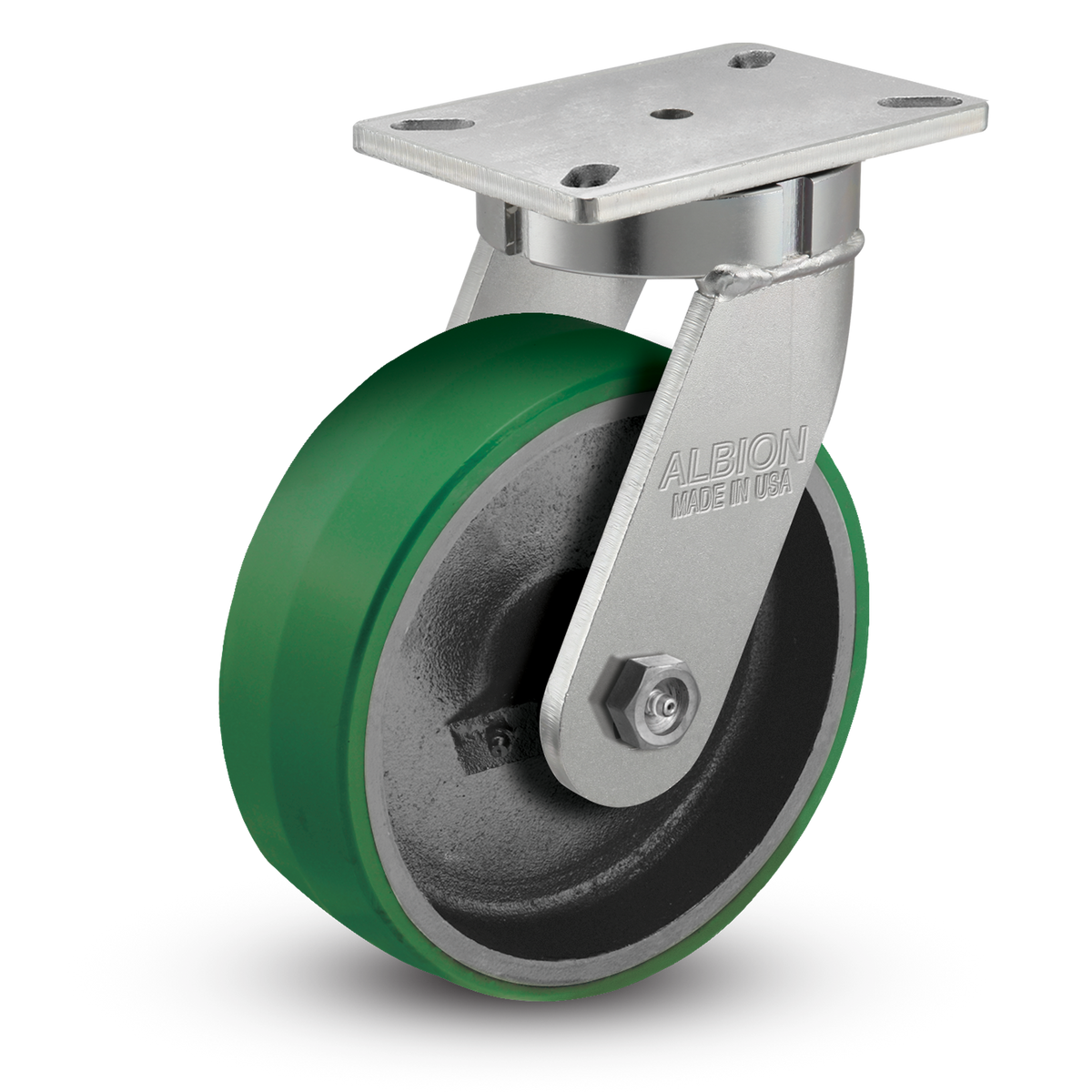

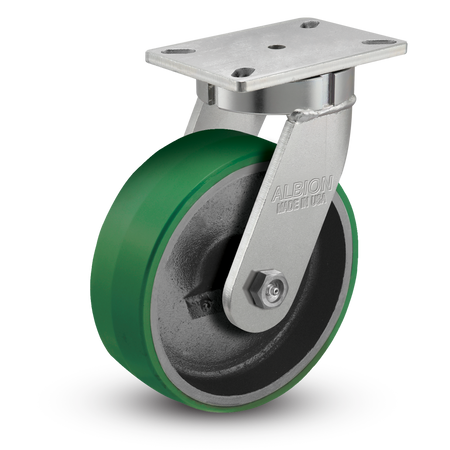

8"x3" Polyurethane on Cast Iron Swivel Caster - 410PY08501S
2500 lbper caster
Regular Price
$248.90
Polyurethane Wheel
8" x 3" Wide Wheel
2500 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 3" |
| Mount Height | 10-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 5-1/4" x 7-1/4" |
| Bolt Hole Spacing | 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" |
| Mounting Bolt Size | 1/2" |
Load & Performance
| Load Capacity | 2500 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Green |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 410 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 410PY08501S
Set this 8-inch green polyurethane-on-iron swivel on a steering corner of the toughest heavy manual cart that workers push and steer across a long run.
The kingpinless welded raceway carries the heavy shock an 8-inch high-capacity cart drives through a swivel without a central kingpin to fail, and the 410 carries up to 5,400 pounds across the series. The roller bearing is built for the heaviest hand-pushed loads, and the green polyurethane on a cast iron core pairs high capacity with a non-marking, floor-friendly tread. At 8 inches it clears joints while staying maneuverable, has a wide 3-inch tread, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.
Ideal applications
- 8-inch green PU-roller swivel steering the toughest heavy manual cart
- Kingpinless welded green 8-inch swivel on a roller-bearing non-marking tread
- High-capacity floor-friendly roller swivel at a 10-1/2 mount height
For a corner that has to park and stay put, the 410PY08501SFBB adds a face brake.
Pairs with: the 8-inch green PY rigid 410PY08501R on the fixed corners and this swivel on the steering corners.
Wrong fit? Need a brake or a precision-ball version? See the braked 410PY08501SFBB and the 8-inch yellow PF ball swivel 410PF08528S.
Also in this family: the 10-inch green PY swivel 410PY10501S, or the full Albion collection.
