MFG PART: 410PY08501R
8"x3" Polyurethane on Cast Iron Rigid Caster - 410PY08501R
2500 lbper caster
Regular Price
$170.18
Polyurethane Wheel
8" x 3" Wide Wheel
2500 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 3" |
| Mount Height | 10-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 5-1/4" x 7-1/4" |
| Bolt Hole Spacing | 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" |
| Mounting Bolt Size | 1/2" |
Load & Performance
| Load Capacity | 2500 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Green |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 410 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 410PY08501R
Set this 8-inch green polyurethane-on-iron rigid on a fixed corner of the toughest heavy manual cart that workers push across a long run under real weight.
At 8 inches the larger wheel rolls over joints with the least hand effort, and the 410 carries up to 5,400 pounds across the series. The green polyurethane on a cast iron core pairs that capacity with a non-marking, floor-friendly tread, and the roller bearing is built for the heaviest manual loads. It is built kingpinless with no central kingpin to fail, with a wide 3-inch tread. As a rigid caster it tracks straight on the fixed corners, bolts on a 5-1/4 by 7-1/4-inch top plate, and holds from -40 to 180°F.
Ideal applications
- 8-inch green PU-roller rigid for the toughest heavy manual hauls
- Roller-bearing green non-marking tread clearing joints under hand push
- High-capacity floor-friendly rigid at a 10-1/2 mount height
For a steering corner instead of a fixed one, the 410PY08501S swivels.
Pairs with: the 8-inch green PY swivel 410PY08501S on the steering corners and this rigid on the fixed corners.
Wrong fit? Need a swivel or a precision-ball version? See the 8-inch green PY swivel 410PY08501S and the 8-inch yellow PF ball rigid 410PF08528R.
Also in this family: the 10-inch green PY rigid 410PY10501R, or the full Albion collection.

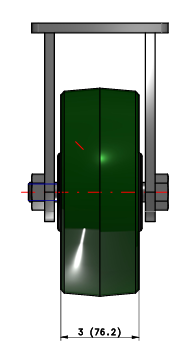

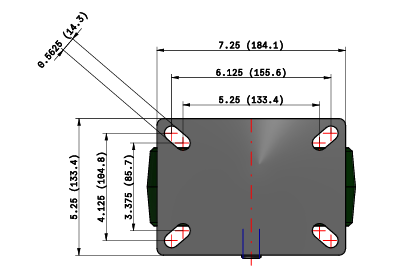

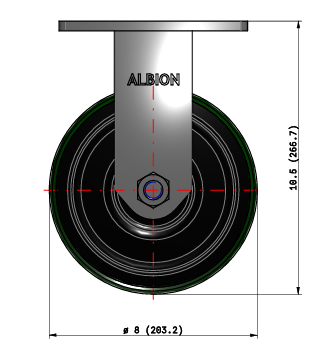

3D CAD Model
