MFG PART: 16TM05201SFBA
5"x2" Phenolic Swivel Caster w/ Face Brake (FBA) - 16TM05201SFBA
1000 lbper caster
Regular Price
$30.81
Phenolic Wheel
5" x 2" Wide Wheel
1000 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

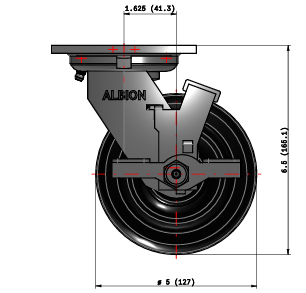

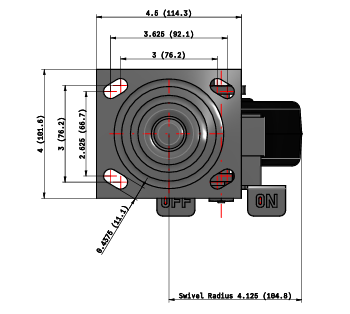

Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1000 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM05201SFBA
Choose this 5-inch braked phenolic swivel for a loaded shop cart on an oily warm floor that has to be parked and held at a station, where the wheel carries hard, resists oil, and locks in place.
The hard molded phenolic wheel carries a high load without deforming and shrugs off the oil and grease that swell elastomer treads, rated to 250°F, and the face brake clamps a shoe against the tread to hold the cart. The roller bearing carries the weight under the swivel. It is the braked phenolic 16 Series caster for the machine shop and assembly line.
Ideal applications
- Loaded machine-shop carts parked on oily floor, to 250°F
- Assembly rigs that roll then brake at each station, hard concrete
- Heavy shop carts that carry high load near warm processes, multi-shift
Skip the brake on corners that only roll; the plain 16TM06201S phenolic swivel covers the rolling corners.
Pairs with: the 16TM05201R phenolic rigid on the back corners of a shop cart.
Wrong fit? Finished floors, or no brake? See rubber and polyurethane 16 Series wheels in the Albion caster collection.
Also in this family: 5-inch phenolic rigid 16TM05201R, 6-inch phenolic swivel 16TM06201S, or the full Albion caster collection.
