About This Caster - 16TM05201S
Choose this 5-inch 16 Series swivel where a rubber or poly wheel flat-spots under a parked load and softens in oil, the hard phenolic caster that holds its shape and shrugs off shop fluids to 250°F.

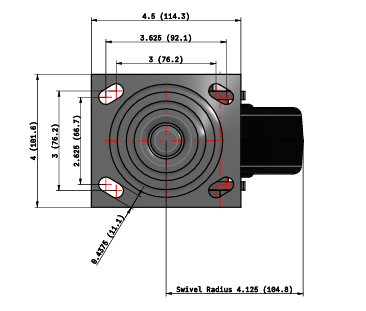

A soft tread sets flat where a loaded cart sits for hours and swells where it meets cutting oil or solvent; the 16 Series phenolic wheel is a hard resin that carries a high load without flattening and tolerates oil and heat to 250°F. The roller bearing carries the medium-heavy load at a walk, and the 5-inch diameter clears a thicker seam than a 4-inch. The 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Loaded carts that sit for hours without flat-spotting
- Oil and solvent areas that swell a soft tread
- Heat to 250°F where rubber and poly give
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16CA03201S takes the heat and a rubber 16XS06201S rolls quiet and non-marking.
Pairs with: the 16TM06201R rigid on the back corners of a phenolic cart.
Wrong fit? Need a brake, or higher heat? See the 16TM06201SFBA face brake and the cast iron 16CA03201S.
Also in this family: the 8-inch 16TM08201S, or the full Albion caster collection.

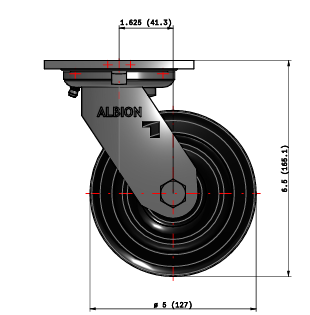

View Datasheet and CAD Model
