MFG PART: 16EG04201SFBA
4" x2" Polyurethane Swivel Caster w/ Face Brake - 16EG04201SFBA
600 lbper caster
Regular Price
$38.55
Polyurethane Wheel
4" x 2" Wide Wheel
600 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

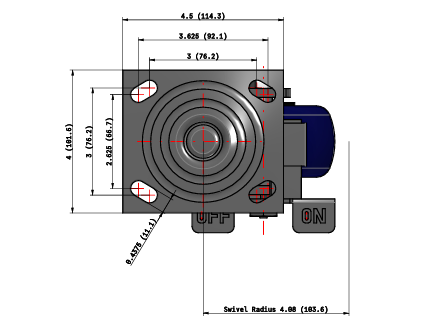

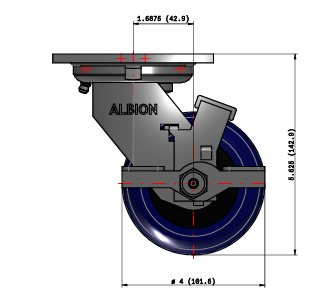

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 600 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16EG04201SFBA
Choose this 4-inch 16 Series swivel where rubber flat-spots under load but the floor still cannot take a mark, the blue polyurethane caster that carries more than rubber and holds at a stop without scuffing.
Mold-on rubber sets flat under a heavy parked load and carries less; the 16 Series EG polyurethane tread on a polypropylene core carries a higher load without flat-spotting and stays non-marking and quiet, and the face brake clamps a shoe to the wheel to hold at a station. The roller bearing carries the load at a walk, the 4-inch diameter keeps the deck low, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Heavier carts on finished floors that cannot take marks
- Loads that flat-spot a rubber tread but need a clean floor
- Braked fronts in clean manufacturing or warehouse
Skip the polyurethane wheel if the floor runs near heat over 180°F or carries constant point loads; a phenolic 16 Series wheel and a cast iron 16CA05201SFBA take the heat where polyurethane gives.
Pairs with: the 16EG05201R rigid on the back corners.
Wrong fit? Want no brake, or more heat? See the plain 16EG05201S swivel and the cast iron 16CA05201SFBA.
Also in this family: the 5-inch 16EG05201SFBA, or the full Albion caster collection.
