Regular Price
$21.82
Polyurethane Wheel
4" x 2" Wide Wheel
600 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |

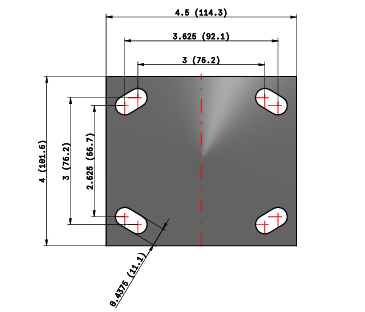

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 600 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16EG04201R
Bolt this 4-inch polyurethane rigid to the back corners of a loaded 16 Series cart so the rear tracks straight on a finished floor while the front swivels steer, the fixed corners that hold the cart on line without marking the surface.
As a rigid it carries its share of the load and tracks true. The blue polyurethane tread holds the load without flat-spotting and rolls non-marking on sealed concrete, and the roller bearing carries the weight. It is the straight-tracking non-marking back-corner partner for a 16 Series polyurethane cart build.
Ideal applications
- Back corners of loaded carts on finished floor, sealed concrete
- Medium-duty rigs that must track straight without marking, multi-shift
- Four-corner carts pairing polyurethane rigids and swivels, single-shift
Skip the rigid on a corner that needs to steer; pair it with the 16EG04201S swivel on the front corners.
Pairs with: the 16EG04201S polyurethane swivel on the front corners.
Wrong fit? Need a steering corner, or a bigger wheel? See the swivel 16EG04201S and 8-inch 16EG08201R in the Albion caster collection.
Also in this family: 4-inch swivel 16EG04201S, 8-inch rigid 16EG08201R, or the full Albion caster collection.
