Regular Price
$30.45
Polyurethane Wheel
4" x 2" Wide Wheel
600 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications

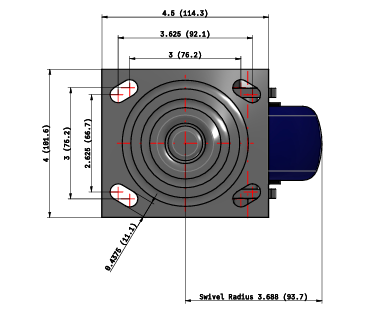

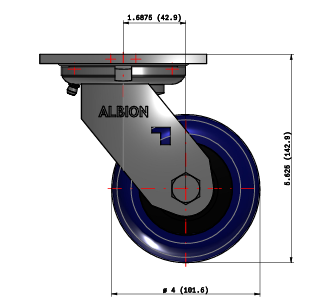

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 600 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16EG04201S
Choose this 4-inch polyurethane swivel for a 16 Series cart that carries a real load on a finished floor, where a rubber tread flattens under the weight but the floor cannot take a marking iron or phenolic wheel.
The blue polyurethane tread is firm enough to carry the load without compression-setting, and it rolls non-marking on sealed concrete and finished floor. The roller bearing carries the weight under the swivel, and the 4-inch size keeps the deck low. It is the non-marking medium-duty swivel of the 16 Series, the step up from rubber for load.
Ideal applications
- Loaded carts on finished floors that cannot be marked, sealed concrete
- Medium-duty transport where rubber has been flattening, multi-shift
- Compact rigs needing non-marking load capacity, finished floor
Skip polyurethane if the floor runs hot or oily; phenolic and iron 16 Series wheels handle heat and chemistry where polyurethane softens.
Pairs with: the 16EG04201R polyurethane rigid on the back corners of a four-corner cart.
Wrong fit? Heat, oil, or a larger wheel? See phenolic wheels and the 8-inch 16EG08201R in the Albion caster collection.
Also in this family: 4-inch rigid 16EG04201R, 8-inch rigid 16EG08201R, or the full Albion caster collection.
