MFG PART: 120EG05229S
5"x2" Polyurethane Swivel Caster Kingpinless Stainless Steel - 120EG05229S
900 lbper caster
Regular Price
$340.47
Polyurethane Wheel
5" x 2" Wide Wheel
900 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
Specifications

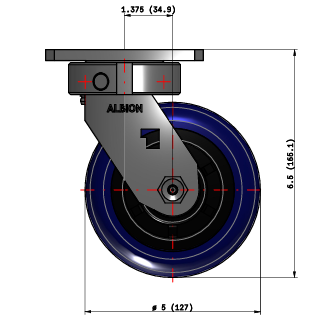

Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |

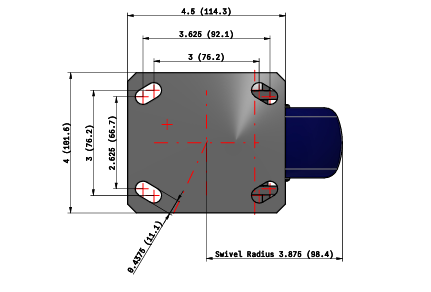

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 900 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Albion 120 Contender Kingpinless Stainless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 120EG05229S
Set this 5-inch polyurethane swivel on a steering corner of a heavier washdown cart that has to maneuver and clear thresholds.
At 5 inches the swivel rolls over seams a smaller wheel catches while keeping the cart easy to steer, and the kingpinless swivel section, welded to the legs inside and out, carries the shock that a heavier cart puts through a swivel without a kingpin to work loose. The blue polyurethane tread is non-marking and easy-rolling, and the stainless frame resists washdown corrosion. It steers on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 6-1/2-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 5-inch blue PU swivel steering a heavier washdown cart
- Kingpinless welded swivel clearing thresholds under load
- Non-marking precision-ball swivel at a 6-1/2 mount height
For a corner that has to park and stay put, the 120EG05229SFBD adds a face brake.
Pairs with: the 5-inch rigid 120EG05229R on the fixed corners and this swivel on the steering corners.
Wrong fit? Need a brake or another size? See the braked 120EG05229SFBD and the 6-inch swivel 120EG06229S.
Also in this family: the 5-inch nylon swivel 120NX05201S, or the full Albion collection.
