MFG PART: 120EG05229R
5"x2" Polyurethane Rigid Caster Kingpinless Stainless Steel - 120EG05229R
900 lbper caster
Regular Price
$243.99
Polyurethane Wheel
5" x 2" Wide Wheel
900 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |

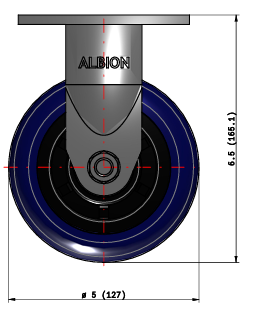

| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |

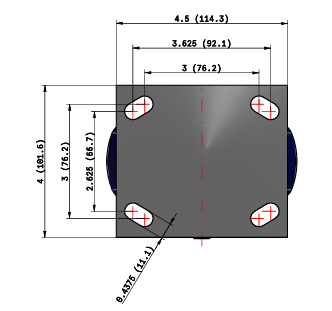

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 900 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Stainless Steel |
| Caster Type | Rigid |
| Brand / Series | Albion 120 Contender Kingpinless Stainless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 120EG05229R
Set this 5-inch polyurethane rigid on a fixed corner of a washdown cart that clears thresholds on a sanitary floor.
The blue polyurethane tread is non-marking and abrasion-resistant, rolling easily and protecting the floor, and at 5 inches it clears thresholds and seams that a 4-inch wheel catches. It is built on the corrosion-resistant 120 Contender stainless frame for repeated washdowns, and as a rigid caster it tracks straight on the fixed corners to steady the cart. It runs on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 6-1/2-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 5-inch blue PU rigid clearing thresholds on a washdown cart
- Non-marking polyurethane tread on a stainless fixed corner
- Precision-ball rigid at a 6-1/2 mount height on a sanitary line
For a steering corner instead of a fixed one, the 120EG05229S swivels.
Pairs with: the 5-inch swivel 120EG05229S on the steering corners and this rigid on the fixed corners.
Wrong fit? Need a swivel or another size? See the 5-inch swivel 120EG05229S and the 6-inch rigid 120EG06229R.
Also in this family: the 4-inch rigid 120EG04229R, or the full Albion collection.
3D CAD Model
