MFG PART: 110FR08201S

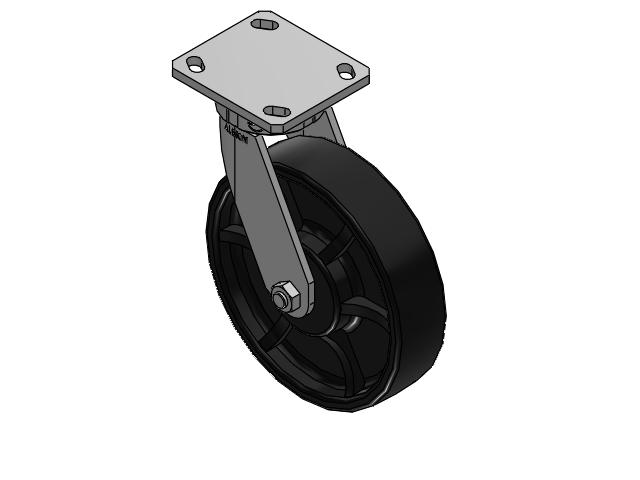

8"x 2" Swivel Albion 110 Series Kingpinless Casters - 110FR08201S
2000 lbper caster
Regular Price
$197.05
Metal Wheel
8" x 2" Wide Wheel
2000 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 10-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
| Swivel Radius | 6.25 |
Load & Performance
| Load Capacity | 2000 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Black |
| Wheel Core | Ductile Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 110 Series Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110FR08201S
Specify this 8-inch ductile iron swivel for the steering corner of the heaviest hot cart that travels long over debris, where a smaller wheel drags, a kingpin shears, and grey cast iron cracks on the impact.
The 8-inch diameter rolls over scale, hose, and joints with the least effort and keeps a loaded cart's momentum on a long run, and Albion's 110 Series Kingpinless swivel rides fully heat-treated raceways with no kingpin to shear. The ductile iron wheel flexes under a shock that splits a brittle grey cast iron wheel and holds a hard load to 800°F, and the roller bearing turns the weight at a slow pace. This is the plain swivel for corners that steer rather than park.
Ideal applications
- Long-run steering corners on the largest ductile iron wheel
- Forge and foundry transfer to 800°F where cast iron cracks
- Heavy carts where kingpin swivels shear under shock
For a corner that must hold, the face-brake 110FR08201SFBC locks the wheel; to track straight on a haul, the swivel-lock 110FR08201SL pins it.
Pairs with: the 110FR08201R rigid on the back corners so the front steers and the rear tracks.
Wrong fit? Smaller wheel, a brake, or a swivel lock? See the 6-inch ductile iron swivel 110FR06201S and the swivel-lock 110FR08201SL.
Also in this family: the 8-inch ductile iron brake 110FR08201SFBC, or the full kingpinless caster collection.
