MFG PART: 110CA05201SFBC
5"x2" Cast Iron Swivel Caster w/ Face Brake - 110CA05201SFBC
1300 lbper caster
Regular Price
$97.51
Metal Wheel
5" x 2" Wide Wheel
1300 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

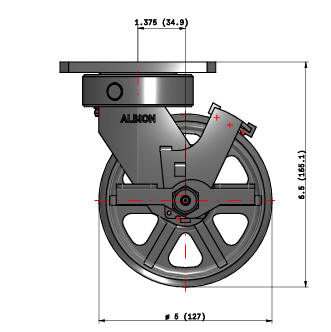

Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|

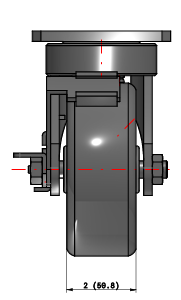

| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |

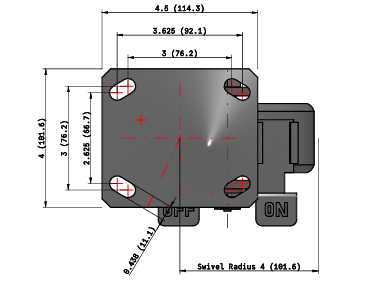

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1300 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA05201SFBC
Use this 5-inch cast iron swivel where a hot cart needs mid-size clearance and has to park and hold, where a kingpin gives out under the bump and a poly wheel will not survive the heat.
The 5-inch diameter clears a higher threshold than a 4-inch wheel and steers easier over seams, and Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear. The grey cast iron wheel carries a hard, heavy load from -100 to 800°F, and the face brake presses on the wheel to stop it rolling once the cart is staged. The roller bearing carries the weight at a slow pace through the turn.
Ideal applications
- Mid-size hot carts parked and held near heat, to 800°F
- 5-inch braked corners that clear seams then hold
- Foundry and oven rigs where kingpin swivels shear
If the floor is finished and cannot take a mark, the polyurethane 110AX05228SFBC brakes the same way without gouging.
Pairs with: the plain 110CA05201S swivel and the 110CA05201R rigid on a four-corner cart.
Wrong fit? No brake, or a different size? See the plain 110CA05201S and the 4-inch brake 110CA04201SFBC.
Also in this family: the 6-inch cast iron brake 110CA06201SFBC, or the full kingpinless caster collection.
3D CAD Model
