MFG PART: 110CA04201SFBC
4"x2" Cast Iron Swivel Caster w/ Face Brake - 110CA04201SFBC
1000 lbper caster
Regular Price
$82.62
Metal Wheel
4" x 2" Wide Wheel
1000 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

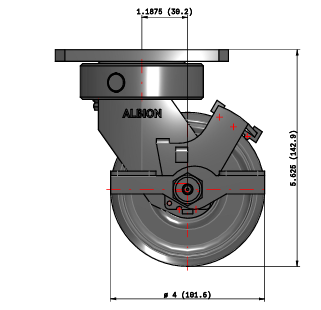

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |

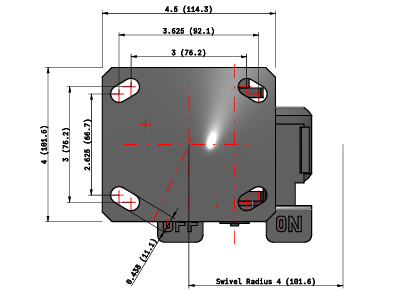

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1000 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA04201SFBC
Choose this 4-inch cast iron swivel for a hot, heavy cart that has to park near an oven or furnace and hold, where a kingpin shears under a forklift bump and a poly tread smears off the wheel in the heat.
This is Albion's 110 Contender Kingpinless construction: the swivel deletes the threaded kingpin and rides a heat-treated raceway, so side load from a bump or a shifting load cannot shear or seize it the way it kills a kingpin caster. The grey cast iron wheel carries a hard, heavy load and holds from -100 to 800°F where rubber and polyurethane fail, and the face brake presses on the wheel to stop it rolling once the cart is set. The roller bearing takes the weight through the turn.
Ideal applications
- Bakery, foundry, and oven carts parked near heat to 800°F
- Heavy rigs where kingpin casters shear under forklift bumps
- 4-inch braked corners that must hold a hot load still
If the floor is finished and cannot take a mark, the polyurethane 110AX04228SFBC brakes the same way without gouging.
Pairs with: the plain 110CA04201S swivel and the 110CA04201R rigid on a four-corner cart.
Wrong fit? Finished floor, or no brake? See the polyurethane 110AX04228SFBC and the plain 110CA04201S.
Also in this family: the 6-inch cast iron brake 110CA06201SFBC, or the full kingpinless caster collection.
3D CAD Model
