Regular Price
$64.52
Metal Wheel
4" x 2" Wide Wheel
1000 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications

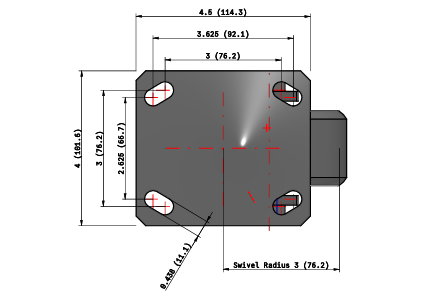

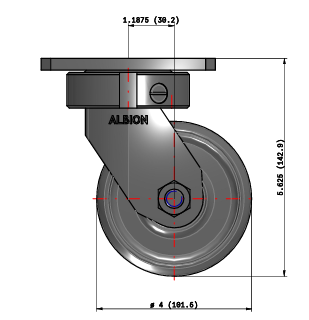

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1000 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA04201S
Put this 4-inch cast iron swivel on the steering corner of a hot, heavy cart, where a kingpin works loose under repeated side load and a soft wheel cannot take the heat the route puts through it.
Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear or seize, so the corner keeps steering after the bumps and shocks that destroy a kingpinned caster. The grey cast iron wheel carries a hard, heavy load and holds from -100 to 800°F, which is why it goes under bakery racks, foundry buggies, and oven carts, and the roller bearing turns the load at a slow, heavy pace. This is the plain swivel for corners that roll and steer rather than park.
Ideal applications
- Steering corners of hot, heavy carts to 800°F
- High-cycle routes where kingpin swivels loosen and seize
- Foundry and bakery rigs needing a 4-inch metal wheel
For a corner that must also hold the cart still, the face-brake 110CA04201SFBC locks the wheel.
Pairs with: the 110CA04201R rigid on the back corners so the front steers and the rear tracks.
Wrong fit? Finished floor, or need a brake? See the polyurethane 110AX04228S and the face-brake 110CA04201SFBC.
Also in this family: the 5-inch swivel 110CA05201S, or the full kingpinless caster collection.
3D CAD Model
