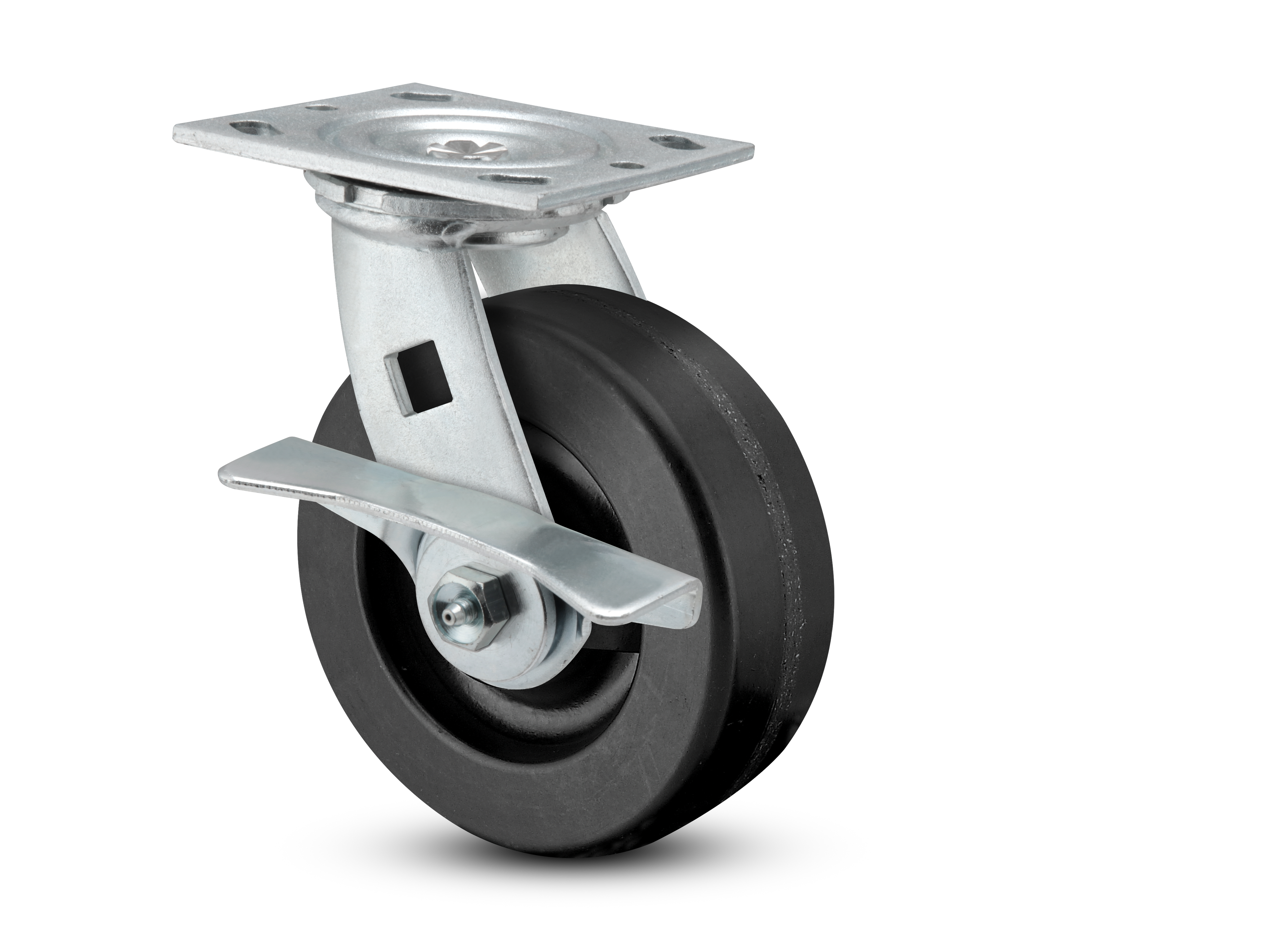

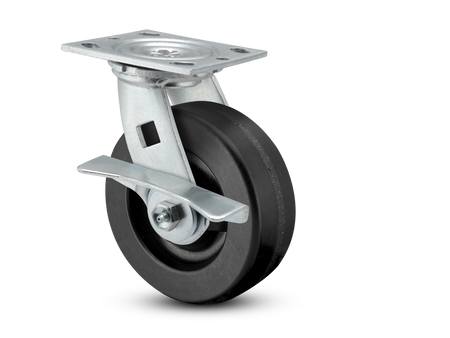

E-line Swivel 5"x2" Phenolic USA-Made Wheel 4"x4.5" Plate Caster w/ 5-Inch Cam Brake; Part# ES5X2PHNCAMS
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Specifications
More Information About This Product
About This Caster - ES5X2PHNCAMS
Set this 5-inch phenolic swivel on the steering corners of a medium-duty oily-floor cart where a firm cam-action lock is wanted, and the wheel still has to roll easy under load.
The wheel is hard resin-bonded phenolic from Pemco: it carries a heavy load on a small footprint, rolls with low resistance, and shrugs off oil, grease, and solvent from -45°F to 250°F. A cam-action foot brake on a 5-inch pedal locks the wheel with a firm step, the swivel turns on a roller bearing so the cart steers, and the brown phenolic wheel bolts on through a 4 by 4-1/2 inch top plate.
Ideal applications
- Steering corners of medium-duty oily-floor carts
- 5-inch cam pedal locking the wheel with a firm step
- Phenolic wheel shrugging off oil to 250°F
Where heat tops 250°F, step to a cast iron E-line wheel that runs hotter than this phenolic. See the Pemco collection.
Pairs with: a matching phenolic rigid on the back corners of a tow cart.
Wrong fit? Prefer a tread lock or higher heat? See the tread-lock ES6X2PHNTBK and a cast iron caster in the Pemco collection.
Also in this family: the Delrin tread-lock ES5X2PHNDTBK, or the full Pemco collection.
View Datasheet and CAD Model
