MFG PART: ER5X2PHNB

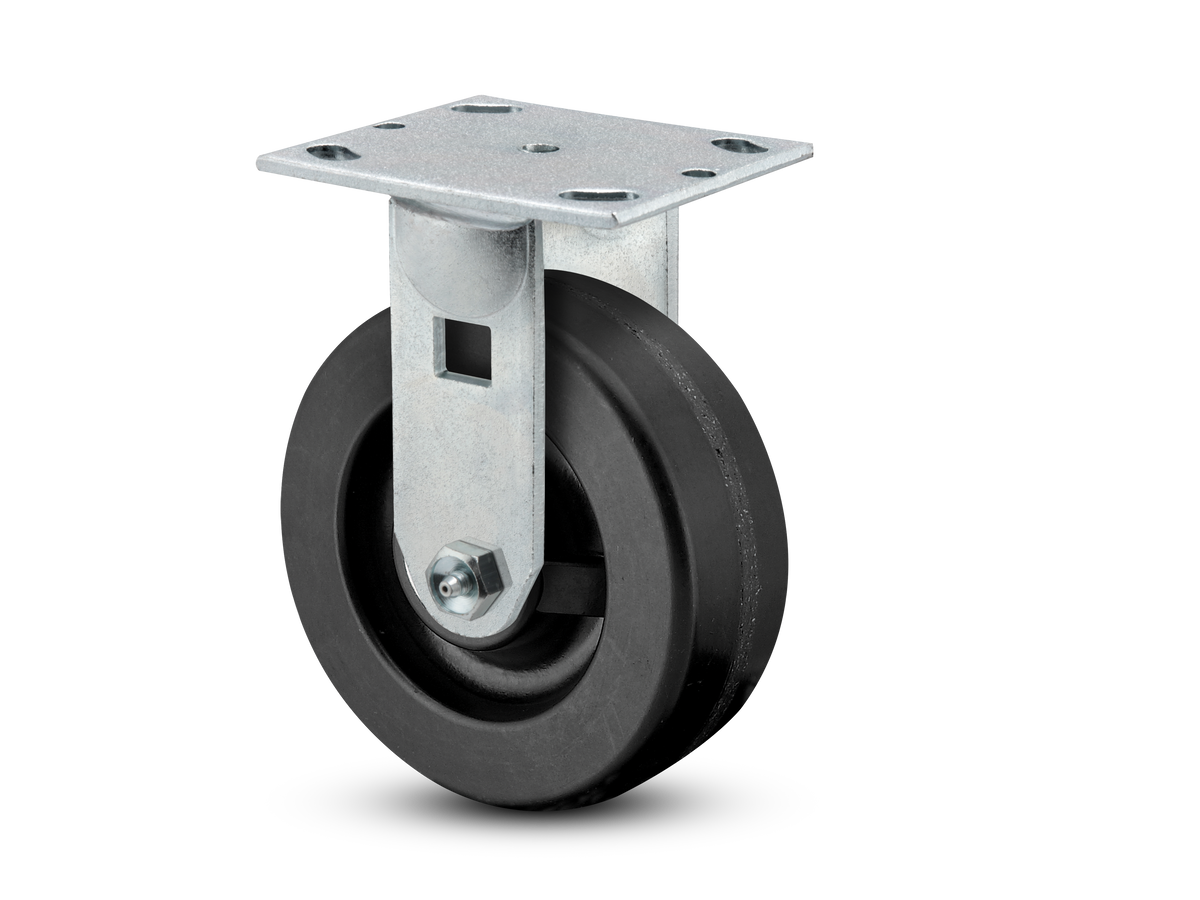

E-line Rigid 5"x2" Phenolic USA-Made Wheel 4"x4.5" Plate Caster; Part# ER5X2PHNB
1000 lbper caster
Regular Price
$17.50
Phenolic Wheel
5" x 2" Wide Wheel
1000 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
250°F Max Temp
QuickShip program: most items ship same or next business day
Specifications
Dimensions & Mounting
| Wheel Diameter | 5" |
|---|---|
| Tread Width | 2" |
| Mount Height | 6-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1000 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 250°F |
| Min Temperature | -45°F |
| Wheel Durometer | 90(±5) Shore D |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Brown |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Pemco E-line |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - ER5X2PHNB
Set this 5-inch phenolic rigid on the back corners of a hand-pushed medium-duty cart, where a precision ball bearing keeps a loaded cart moving by hand over an oily floor all shift.
The wheel is hard resin-bonded phenolic from Pemco: it carries a heavy load on a small footprint and shrugs off oil, grease, and solvent from -45°F to 250°F. The precision ball bearing cuts the starting and rolling effort, so a loaded cart moves under hand power instead of a shoulder, and at 5 inches the wheel rolls easier over seams. The rigid fork holds the line, and the brown phenolic wheel bolts on through a 4 by 4-1/2 inch top plate.
Ideal applications
- Back corners of hand-pushed medium-duty carts
- Precision ball bearing moving a loaded cart by hand
- 5-inch phenolic wheel inert to oil at 250°F
Where the cart is parked more than pushed, a roller-bearing ER5X2PHN costs less than this precision ball version.
Pairs with: a matching ball-bearing phenolic swivel on the front corners.
Wrong fit? Parked more than pushed, or a brake? See the roller-bearing ER5X2PHN and the tread-lock ER5X2PHNTBK.
Also in this family: the 4-inch ball-bearing ER4X2PHNB, or the full Pemco collection.
