MFG PART: D4.08109.839 RW SS WB29

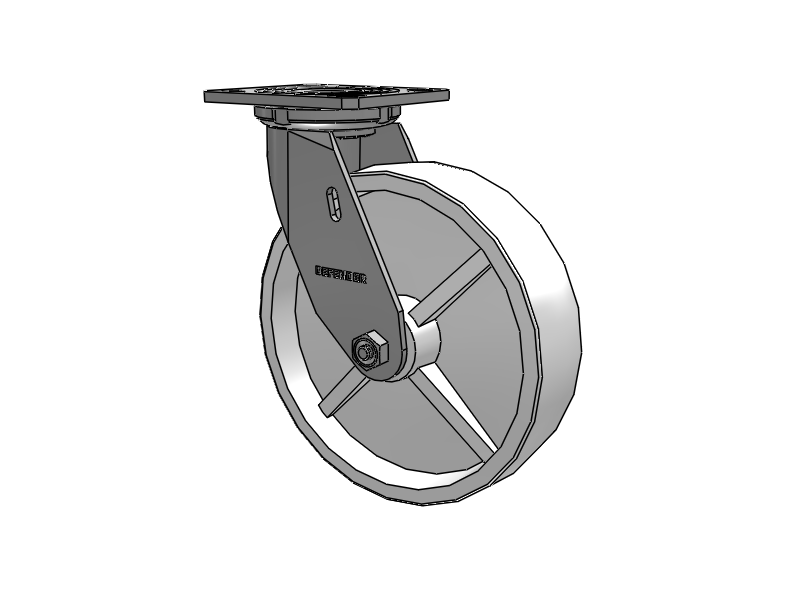

8"X2" Stainless Steel Top Plate Swivel Caster with Retort Hi-Temp Wheel - D4.08109.839 RW SS WB29
900 lbper caster
Regular Price
$269.61
Composite Wheel
8" x 2" Wide Wheel
900 lb Load Capacity
Roller Bearing
Top Plate Mount
250°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" to 3" x 3" |
| Swivel Radius | 6.375 |
Load & Performance
| Load Capacity | 900 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -45°F |
| Wheel Durometer | 40(±5) Shore D |
Materials & Finish
| Wheel Material | Composite |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polyolefin |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.08109.839 RW SS WB29
Use this 8-inch Defender D4 swivel when a loaded sterilization or retort cart steers through steam and high heat, clears the biggest obstacles, and travels slowly.
The swivel head steers the front of the cart, with a 6.375-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings at a slow, controlled pace. The blue hi-temp retort polypropylene wheel rides through autoclave and food-processing retort cycles where heat and steam would soften an elastomer, holding to 250°F and resisting sterile-processing chemicals. The tallest 8-inch wheel clears the widest cracks and big obstacles, on a stainless steel frame for wash-down service. The wheel is hard with no cushioning and can mark a soft floor. It serves from -45 to 250°F.
Ideal applications
- Loaded retort and autoclave carts steered slowly through steam
- Heavy sterile-processing rigs that clear big obstacles
- Maneuverable stainless carts needing heat and chemical resistance
Confirm the roller-bearing load class and steam-grade fit, allow for the 6.375-inch swivel radius, before ordering.
Pairs with: the 8-inch Retort hi-temp precision-ball swivel D4.08109.835 RW on faster lead corners.
Wrong fit? Need a heat-grade nylon instead of steam-grade plastic? See the 8-inch hi-temp glass-filled nylon roller swivel D4.08109.839 HTBLK in the Colson collection.
Also in this family: the cushioned 8-inch Endura roller swivel D4.08109.839 EN, or the full Colson collection.
3D CAD Model
