MFG PART: D4.04109.459 COND SS WB29

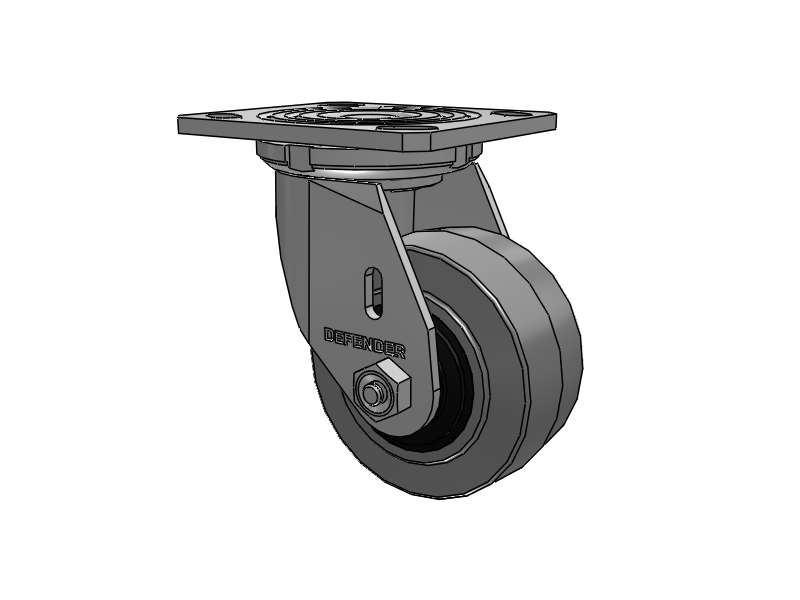

4" Stainless Steel Caster w/ Performa Rubber (Flat/Conductive) Wheel - D4.04109.459 COND SS WB29
300 lbper caster
Regular Price
$185.58
Rubber Wheel
4" x 2" Wide Wheel
300 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
| Swivel Radius | 3.375 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Core | Polyolefin |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.04109.459 COND SS WB29
Reach for this 4-inch Defender D4 swivel when a heavier cart must both steer and drain static in an ESD-sensitive or flammable workspace.
The swivel guides the front of the cart through tight bays, with a 3.375-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings, carrying weight at a slow, controlled pace. The conductive flat-tread Performa wheel carries static charge from the cart down through the caster to ground, protecting electronics and reducing spark risk near solvents or dust. The flat profile gives a stable footprint, and the soft rubber rolls quietly and stays easy on floors, though the conductive compound can mark a light surface. The stainless steel frame suits wash-down duty. Soft rubber holds the load class modest, so static control leads. It serves from -45 to 180°F.
Ideal applications
- Heavier ESD-sensitive carts that must drain static while steering
- Flammable or solvent bays needing maneuverable static control under load
- Front steering corners with a stable conductive footprint
Verify the conductive resistance spec and that the wheel and swivel both carry the path to ground, plus the 3.375-inch swivel radius, before ordering.
Pairs with: matching conductive Defender D4 casters on all four corners so the loaded cart stays grounded, including the conductive roller rigid 49MI42GT-02.
Wrong fit? No static concern, just a quiet non-marking swivel? See the grey flat-tread roller swivel 49MI42V-02 in the Colson collection.
Also in this family: the precision-ball conductive swivel 49MG42VT-02, or the full Colson collection.
