MFG PART: 2.03256.445 BRK1

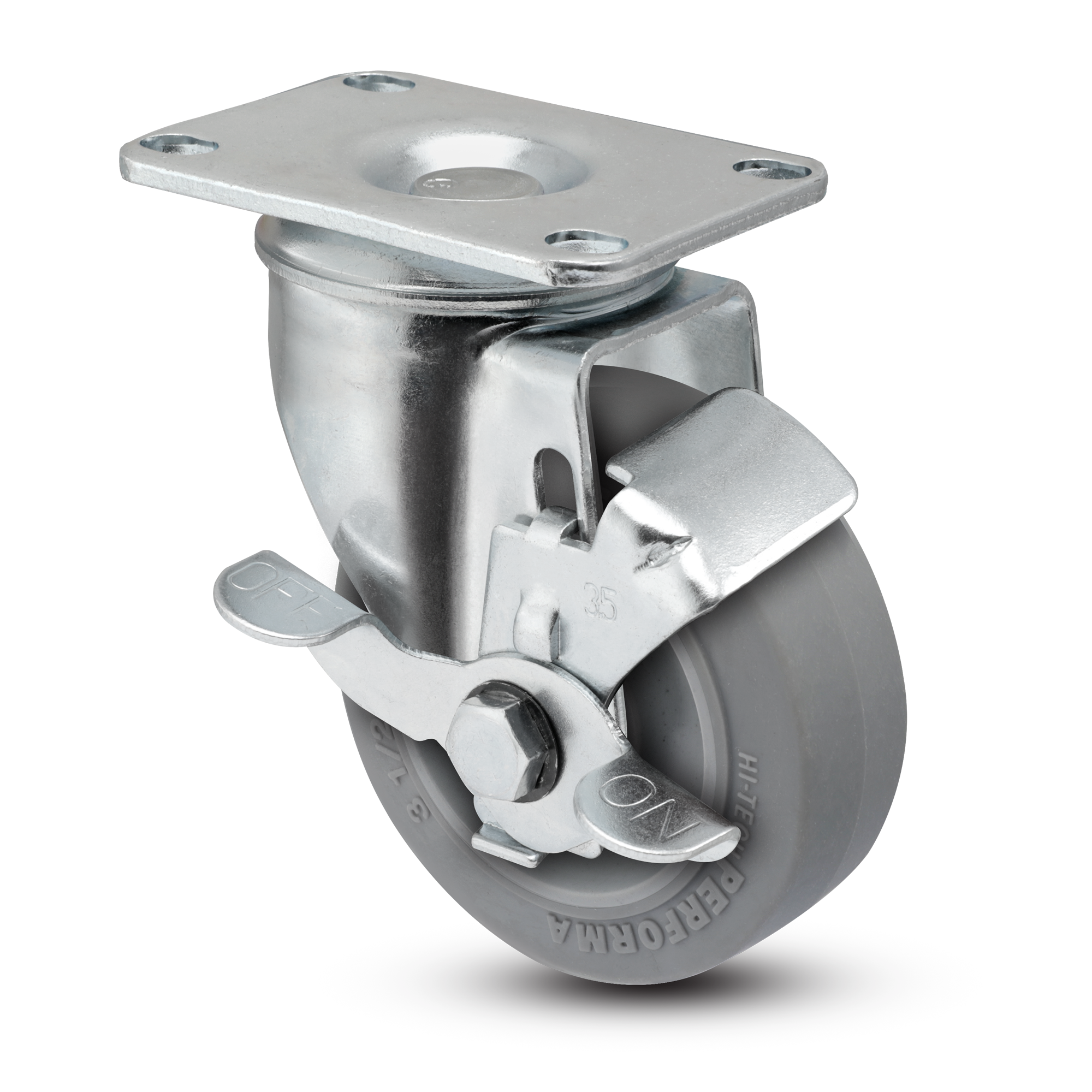

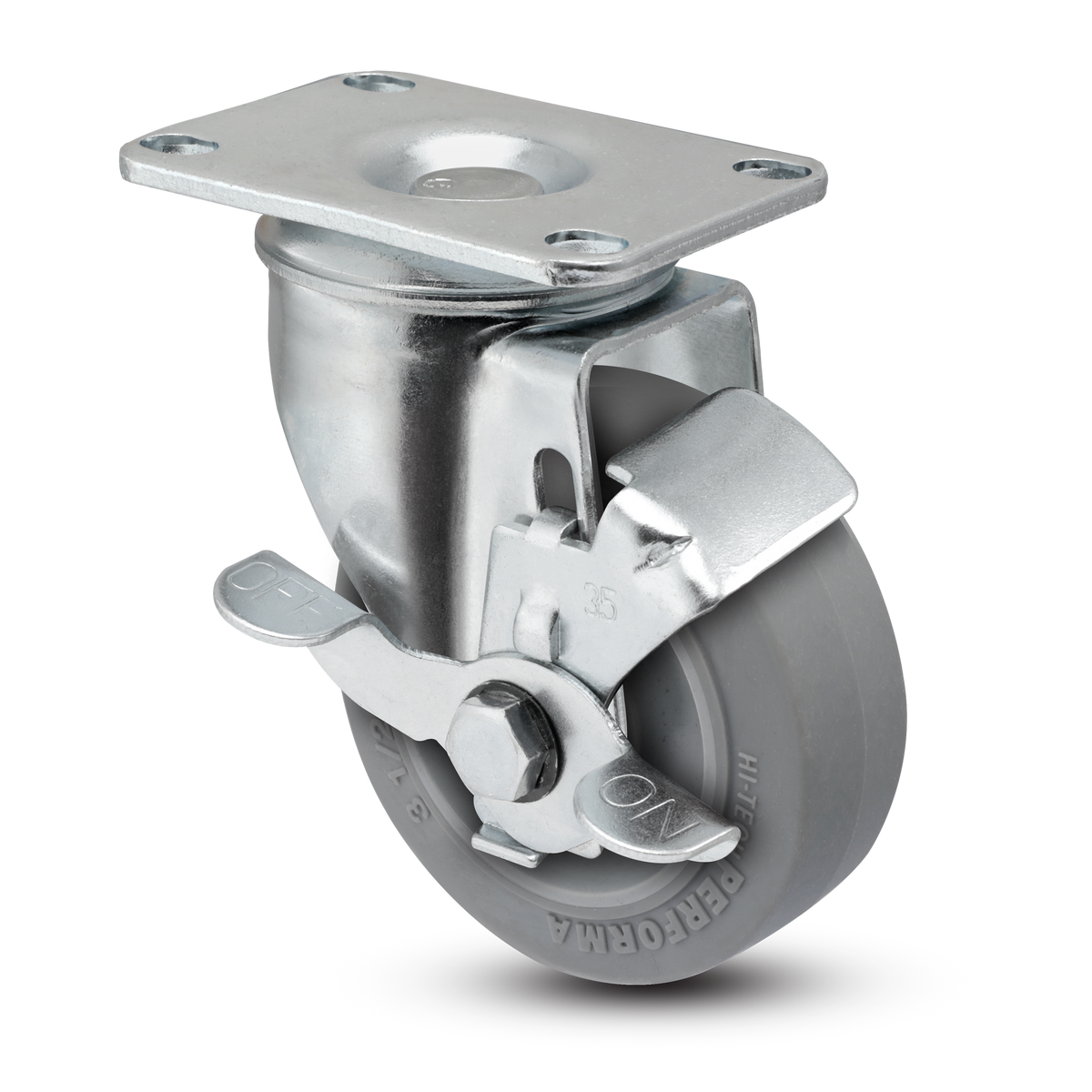

3.5" Performa Rubber 2 Series Swivel Caster - 2.03256.445 BRK1
250 lbper caster
Regular Price
$20.76
Rubber Wheel
3-1/2" x 1-1/4" Wide Wheel
250 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 3-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 4-11/16" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.6250 |
Load & Performance
| Load Capacity | 250 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.03256.445 BRK1
Specify this 3.5-inch Performa rubber swivel with the ball bearing, top lock brake, and top plate for a flat-framed cart that rolls easy and parks at a bench, the ball bearing that carries a loaded cart and the brake that pins the wheel where you set it.
The ball bearing carries a heavier load and rolls it with less push than a Delrin bore, so a busy cart starts and steers with less effort, the top lock brake stops the wheel so the cart holds at a station, the Performa rubber tread cushions the load and leaves no mark, and the plate bolts to a flat frame for a solid mount. Confirm your bolt pattern matches the 3-5/8 by 2-1/2 inch plate before you order. It is the easy-rolling braked rubber swivel for a busy flat-framed cart.
Ideal applications
- Busy flat-framed cart that parks at a bench between runs
- Loaded cart that rolls easy on a ball bearing
- Wheel that locks against creep at a station
Want the swivel pinned too, or no brake? A total-lock or the plain plate version fits a different need.
Pairs with: the rubber ball rigid 31MB35G-03 on the trailing corners.
Wrong fit? Need a full lock or static drain? See the total-lock ball plate swivel 31MB35V05-03 and the conductive ball plate swivel 31MB35VT-03.
Also in this family: the wide-plate ball swivel 33MB35V-03, or the 2 Series caster collection.
