MFG PART: 2.03256.445

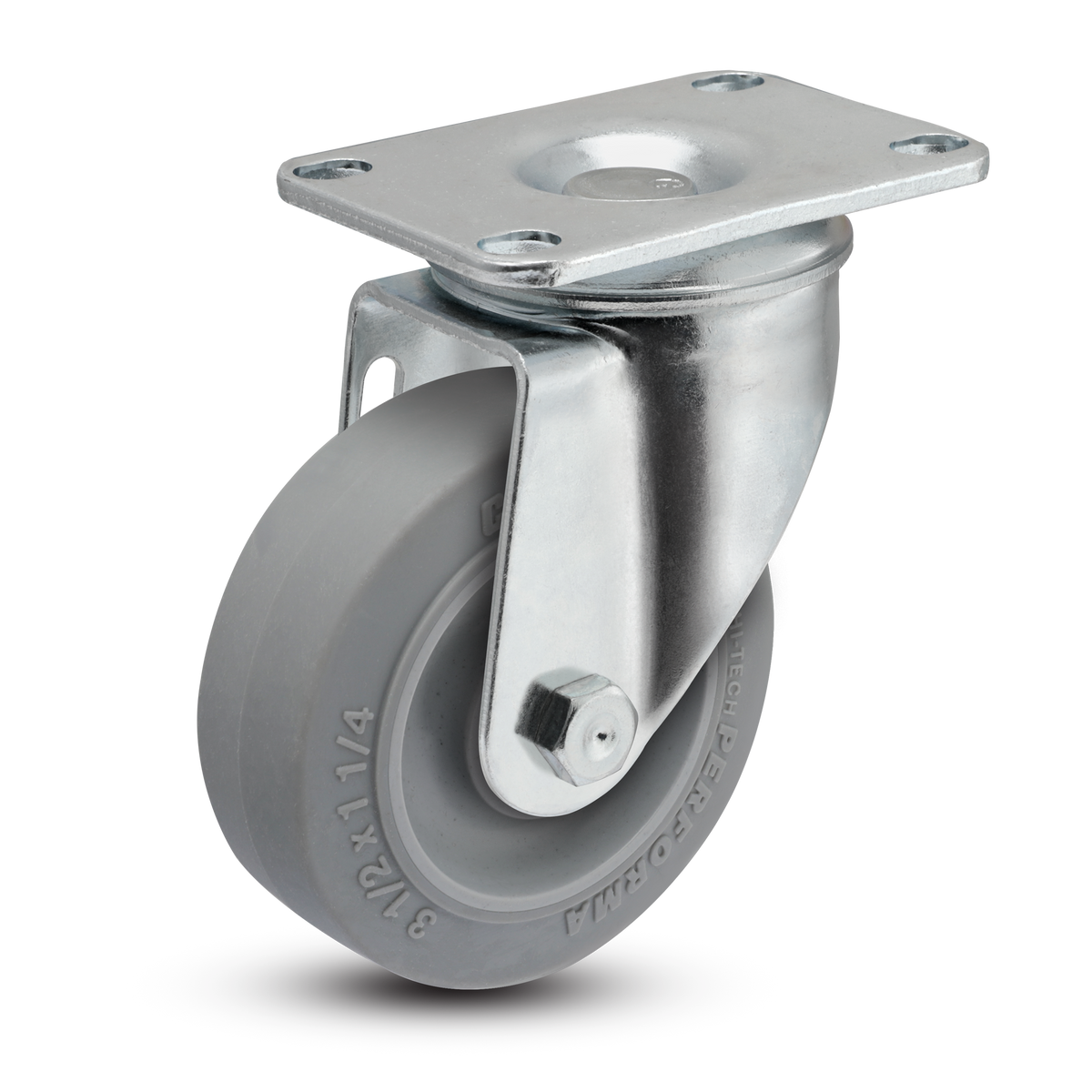

3.5" Performa Rubber 2 Series Swivel Caster - 2.03256.445
250 lbper caster
Regular Price
$16.43
Rubber Wheel
3-1/2" x 1-1/4" Wide Wheel
250 lb Load Capacity
Ball Bearing Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 3-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 4-11/16" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 2.9063 |
Load & Performance
| Load Capacity | 250 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.03256.445
Choose this 3.5-inch Performa rubber swivel for a busy institutional cart that must roll quiet and gets pushed constantly, the soft non-marking caster on a ball bearing built for the traffic.
The Performa rubber tread runs near-silent and protects finished floors, the reason the 2 Series anchors hospital, school, and food-service fleets. The ball bearing is what suits it to a high-traffic cart: it keeps the wheel rolling smooth through hundreds of starts and stops a day, where a plain bearing would stiffen under that use. The top plate bolts to a flat frame, and at 3.5 inches the caster stays maneuverable in tight aisles. It is the quiet caster for a cart that runs all shift.
Ideal applications
- High-traffic nursing or service cart pushed all shift, sealed floor
- Quiet institutional rig with constant starts and stops
- Tight-aisle cart needing a soft non-marking tread
Skip Performa rubber if the load flattens a soft tread; the polyurethane 31JB35V-03 carries more without marking.
Pairs with: the matching threaded-stem Performa rubber 31MB35X58-03 where a leg socket mount fits the cart.
Wrong fit? Heavier load, or a brake? See the polyurethane 31JB35V-03 and the braked 31MB35X5805-03.
Also in this family: the threaded-stem Performa 31MB35X58-03 and polyurethane 31JB35V-03, or the 2 Series caster collection.
