MFG PART: 16TM04201SFBA
4"x2" Phenolic Swivel Caster w/Face Brake (FBA) - 16TM04201SFBA
800 lbper caster
Regular Price
$27.79
Phenolic Wheel
4" x 2" Wide Wheel
800 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 800 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM04201SFBA
Specify this 4-inch 16 Series swivel for a low oil-and-heat cart that must hold at a stop, the phenolic caster whose hard tread carries the load without flattening while a face brake clamps it still where a soft braked wheel would set.
A soft braked wheel flat-spots where a heavy cart parks against the brake near oil; the 16 Series phenolic wheel is a hard resin that holds its shape and takes oil and heat to 250°F, and the face brake presses a shoe against the wheel face to hold at a station. The roller bearing carries the load at a walk, the 4-inch diameter keeps the cart low, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Low oil-and-heat carts that hold at a stop to 250°F
- Braked stations where a soft tread would flat-spot
- Cutting-oil and solvent areas that swell a soft tread
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16 Series wheel takes the heat and a rubber 16XS05201SFBA rolls quiet and non-marking.
Pairs with: the plain 16TM04201S swivel on the rolling corners.
Wrong fit? Want no brake, or a quieter tread? See the plain 16TM04201S swivel and the rubber 16XS05201SFBA.
Also in this family: the 8-inch 16TM08201SFBA, or the full Albion caster collection.

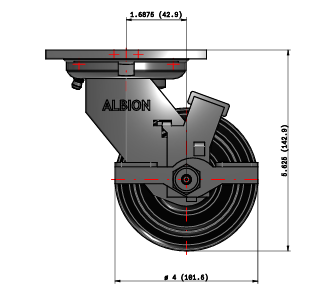

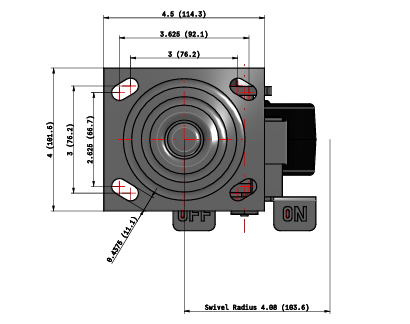

3D CAD Model
