Regular Price
$20.99
Phenolic Wheel
4" x 2" Wide Wheel
800 lb Load Capacity
Roller Bearing
Top Plate Mount
250°F Max Temp
Specifications

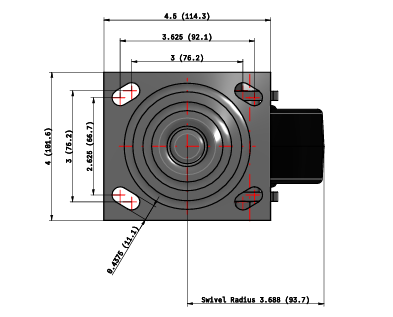

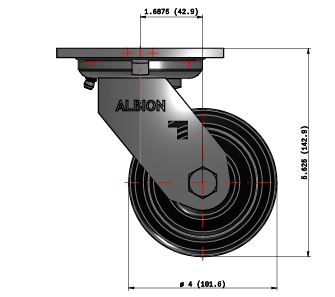

Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 800 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM04201S
Choose this 4-inch 16 Series swivel for the front of a low cart that works near oil and heat, the phenolic caster that holds its shape where a soft tread flat-spots and softens in shop fluids.
A rubber or poly wheel sets flat where a loaded cart parks and swells where it meets cutting oil; the 16 Series phenolic wheel is a hard resin that carries a high load without flattening and tolerates oil and heat to 250°F. The roller bearing carries the load at a walk, the 4-inch diameter keeps the cart low, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Front of low carts near oil and heat to 250°F
- Loads that flat-spot a soft tread at a parked station
- Solvent areas that swell a rubber wheel
Skip the phenolic wheel if the floor runs near 800°F or the cart needs a quiet non-marking tread; a cast iron 16 Series wheel takes the heat and a rubber 16XS05201S rolls quiet and non-marking.
Pairs with: the 16TM04201SFBA face brake where the cart parks at a station.
Wrong fit? Need a brake, or higher heat? See the 16TM04201SFBA face brake and a cast iron 16 Series wheel.
Also in this family: the 8-inch 16TM08201R, or the full Albion caster collection.
3D CAD Model
