Regular Price
$37.97
Polyurethane Wheel
8" x 2" Wide Wheel
1200 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications

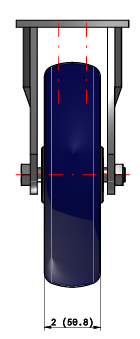

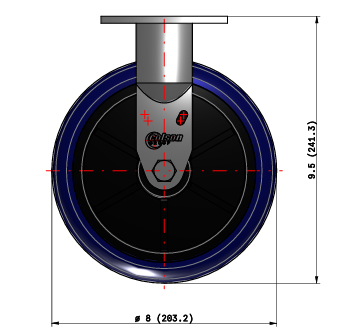

Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |

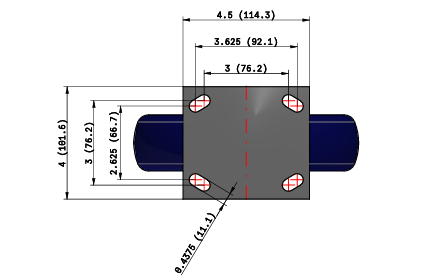

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16EG08201R
Bolt this 8-inch polyurethane rigid to the back corners of a larger loaded cart that has to track straight over rough floor while keeping a finished surface mark-free, the rear corners that hold a heavy rig on line.
The 8-inch diameter rolls over dock lips and rough floor that stall a smaller wheel, and the blue polyurethane tread carries the load without flat-spotting and rolls non-marking on sealed concrete. As a rigid it tracks true while the front swivels steer, and the roller bearing carries the weight. It is the large non-marking rigid of the 16 Series for bigger transport carts.
Ideal applications
- Back corners of larger loaded carts on rough finished floor, sealed concrete
- Heavy transport rigs that track straight over dock lips, multi-shift
- Big four-corner carts needing a large non-marking wheel, finished floor
Skip the 8-inch if the deck height is tight or the floor is smooth; a 4-inch 16EG04201R keeps the deck lower where there is nothing to climb over.
Pairs with: a matching 8-inch polyurethane swivel on the front corners of a four-corner cart.
Wrong fit? Lower deck, or a steering corner? See the 4-inch rigid 16EG04201R and swivels in the Albion caster collection.
Also in this family: 4-inch rigid 16EG04201R, 4-inch swivel 16EG04201S, or the full Albion caster collection.
