Regular Price
$103.58
Metal Wheel
8" x 2" Wide Wheel
1800 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications

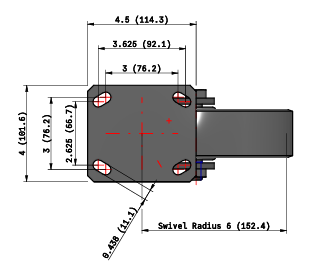

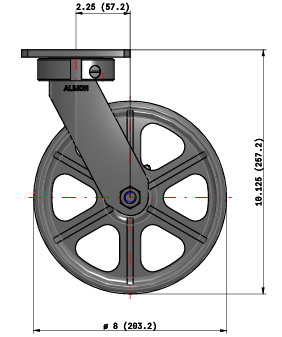

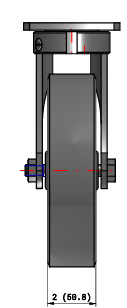

Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 10-1/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1800 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA08201S
Build this 8-inch cast iron swivel into a heavy cart that travels long, hot runs over debris, where a smaller wheel jams against scale and a kingpin gives out under the steering load.
The 8-inch diameter is the largest here and rolls over chips, hose, and floor joints with the least effort, holding a loaded cart's momentum down a long run, and Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear. The grey cast iron wheel carries a hard, heavy load from -100 to 800°F, suited to foundry transfer and oven-line carts, and the roller bearing turns the weight at a slow pace. Confirm the rig clears an 8-inch wheel before building.
Ideal applications
- Long hot runs over debris on the largest 110 wheel, to 800°F
- Foundry transfer and oven-line carts holding momentum
- Heavy steering corners where kingpin swivels shear
For a corner that must hold the cart still, the face-brake 110CA08201SFBC locks the wheel.
Pairs with: the 6-inch rigid 110CA06201R on the back corners, or matching 8-inch rigid casters where available.
Wrong fit? Finished floor, or a smaller wheel? See the polyurethane 110AX08228S and the 6-inch swivel 110CA06201S.
Also in this family: the 8-inch cast iron brake 110CA08201SFBC, or the full kingpinless caster collection.
3D CAD Model
