Regular Price
$80.37
Metal Wheel
6" x 2" Wide Wheel
1400 lb Load Capacity
Roller Bearing
Top Plate Mount
800°F Max Temp
Specifications

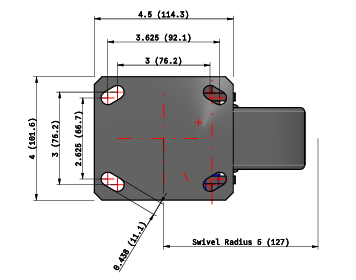

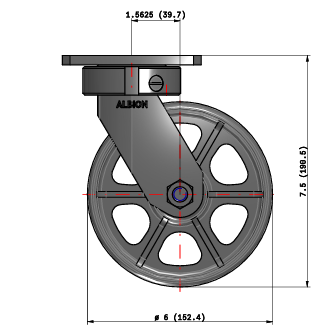

Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1400 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA06201S
Reach for this 6-inch cast iron swivel on the steering corner of a hot, heavy cart that crosses debris, where a kingpin shears under the bump and a smaller wheel hangs up on scale.
The 6-inch diameter rolls over chips, spatter, and seams that stop a 4-inch wheel, and Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear or seize under side load. The grey cast iron wheel carries a hard, heavy load from -100 to 800°F, suited to foundry, oven, and heat-treat carts, and the roller bearing turns the load slowly. This is the plain swivel for corners that steer rather than park.
Ideal applications
- Steering corners crossing scale and debris on a hot cart
- Foundry, oven, and heat-treat rigs running to 800°F
- High-cycle routes where kingpin swivels shear under shock
For a corner that must hold the cart still, the face-brake 110CA06201SFBC locks the wheel.
Pairs with: the 110CA06201R rigid on the back corners so the front steers and the rear tracks.
Wrong fit? Finished floor, or a bigger wheel? See the polyurethane 110AX06228S and the 8-inch swivel 110CA08201S.
Also in this family: the 5-inch swivel 110CA05201S, or the full kingpinless caster collection.
