MFG PART: 110CA06201SFBC
6"x2" Cast Iron Swivel Caster w/ Face Brake - 110CA06201SFBC
1400 lbper caster
Regular Price
$86.01
Metal Wheel
6" x 2" Wide Wheel
1400 lb Load Capacity
Face Brake
Roller Bearing
Top Plate Mount
Specifications

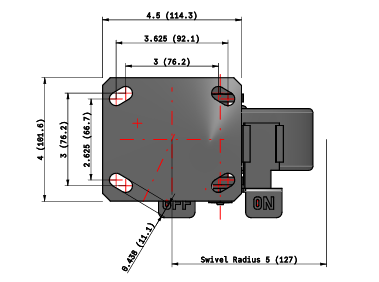

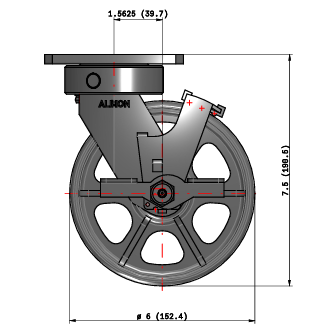

Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1400 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 800°F |
| Min Temperature | -100°F |
| Wheel Durometer | Brinell 145 |
| Brake Type | Face Brake |
Materials & Finish
| Wheel Material | Metal |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Cast Iron |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Albion 110 Contender Kingpinless |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 110CA06201SFBC
Specify this 6-inch cast iron swivel for a hot, heavy cart that crosses debris near a furnace and then has to park and hold, where a smaller wheel jams on chips and a kingpin gives out under the side load.
The 6-inch diameter rolls over weld spatter, scale, and floor seams that stop a 4-inch wheel, and Albion's 110 Contender Kingpinless swivel rides a heat-treated raceway with no kingpin to shear under a bump. The grey cast iron wheel holds a hard, heavy load from -100 to 800°F, and the face brake presses on the wheel to stop it once the cart is staged. The roller bearing carries the weight at a slow pace.
Ideal applications
- Hot carts crossing scale and chips near a furnace, to 800°F
- 6-inch braked corners that roll debris then park and hold
- Heavy rigs where kingpin swivels shear under side load
If the floor is finished and mark-sensitive, the polyurethane 110AX06228SFBC brakes the same way without gouging.
Pairs with: the plain 110CA06201S swivel and the 110CA06201R rigid on a four-corner cart.
Wrong fit? Smaller wheel, or no brake? See the 4-inch brake 110CA04201SFBC and the plain 110CA06201S.
Also in this family: the 8-inch cast iron brake 110CA08201SFBC, or the full kingpinless caster collection.
3D CAD Model
