MFG PART: C0020120ZN-POL01(KK)B

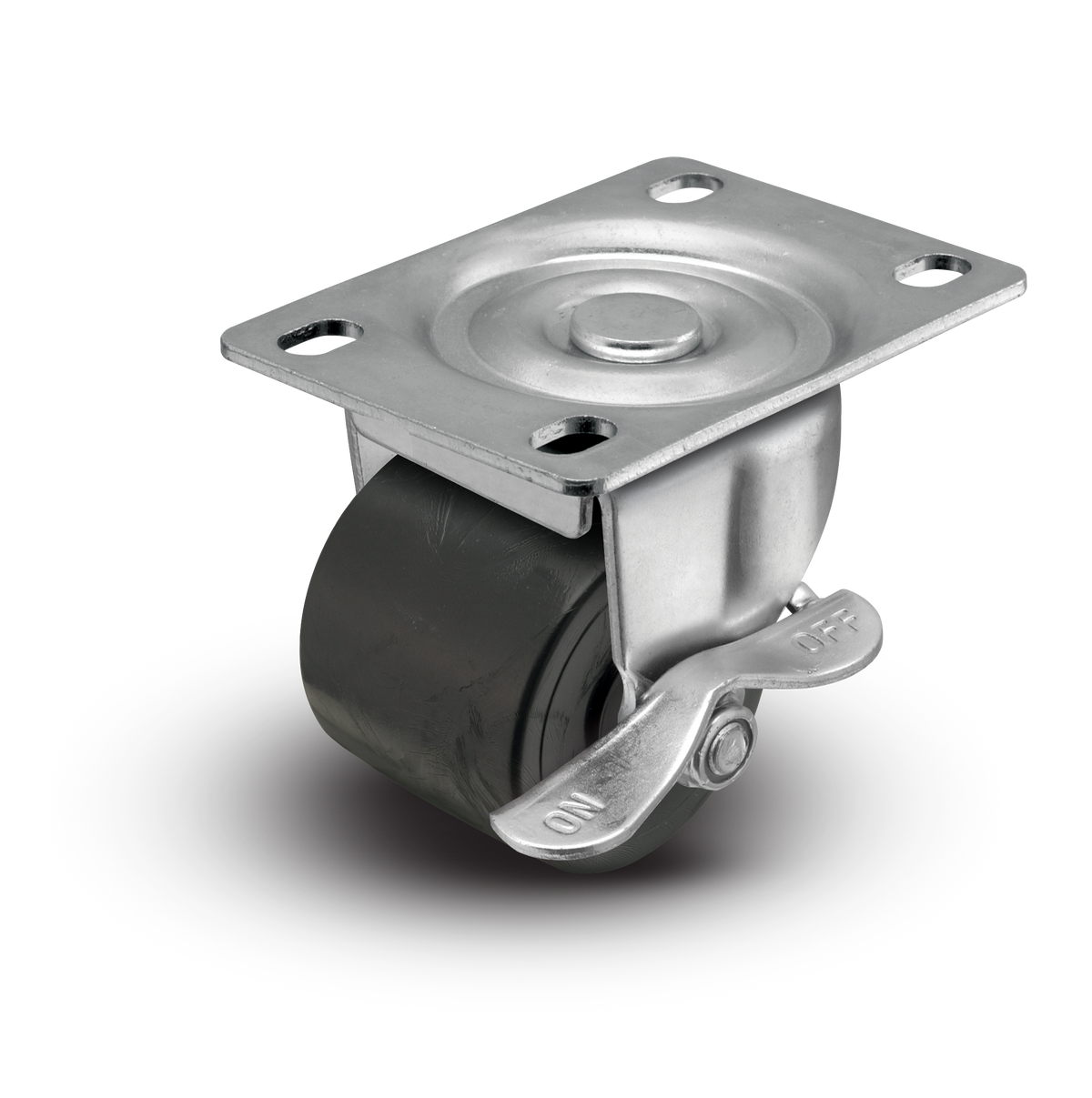

2" Polypropylene Swivel Caster - C0020120ZN-POL01(KK)B
300 lbper caster
Regular Price
$9.58
Polyolefin Wheel
2" x 1.81" Wide Wheel
300 lb Load Capacity
Side Brake
Plain Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2" |
|---|---|
| Tread Width | 1.81" |
| Mount Height | 2-13/16" |
| Fastening Type | Top Plate |
| Fastening Size | 2-5/8" x 3-3/4" |
| Bolt Hole Spacing | 1-3/4" x 2-3/4" to 3" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 2.9375 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Plain |
| Max Temperature | 230°F |
| Min Temperature | -20°F |
| Wheel Durometer | 65-70 Shore D |
| Brake Type | Side Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Shepherd 00 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - C0020120ZN-POL01(KK)B
Choose this 2-inch braked polyolefin swivel for a light fixture or piece of equipment that has to be set in place and held, where a small wheel still needs to lock so the unit does not creep.
The side brake throws a lever against the wheel to lock it, and the light polyolefin wheel is chemical-resistant to 230°F with no steel to rust. The 2-inch size keeps the deck low, and the top plate bolts to a flat frame. It is the braked version of the C0020 light-duty swivel.
Ideal applications
- Light fixtures and equipment that park in a set position, finished floor
- Compact damp-area carts that must hold still, sealed floor
- Small gear needing a low-profile braked caster, single-shift
Skip the brake on corners that only roll and steer; the plain C0020120ZN-POL01(KK) costs less for those.
Pairs with: plain C0020120 swivels on the rolling corners.
Wrong fit? No brake needed, or a stem mount? See the plain version and grip-ring casters in the Shepherd collection.
Also in this family: plain C0020120(KK), or the full Shepherd collection.
