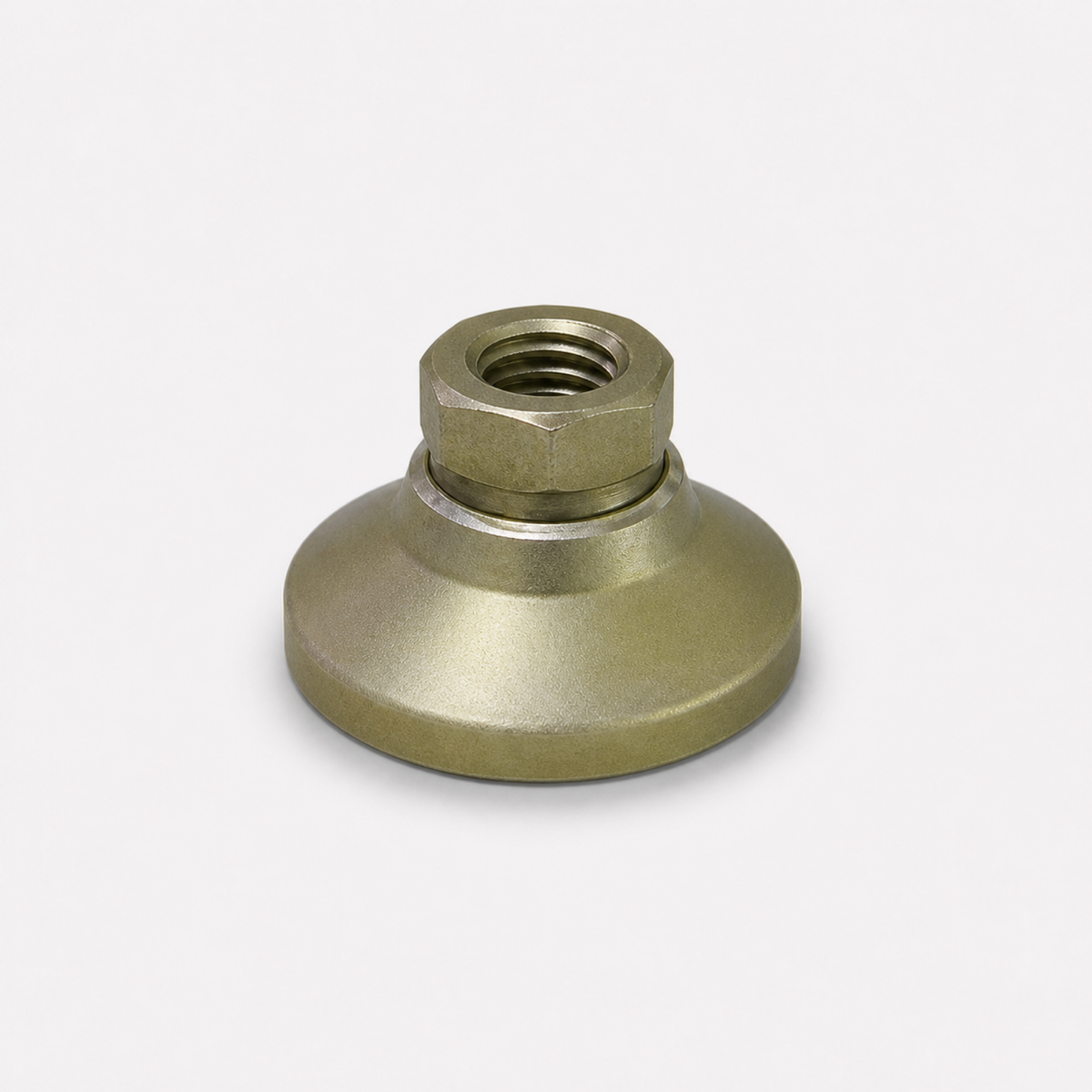

Tapped 1" Base Steel Swivel Leveling Mount for 1/4"-20 Thread - TSW-0

About This Leveling Mount - TSW-0

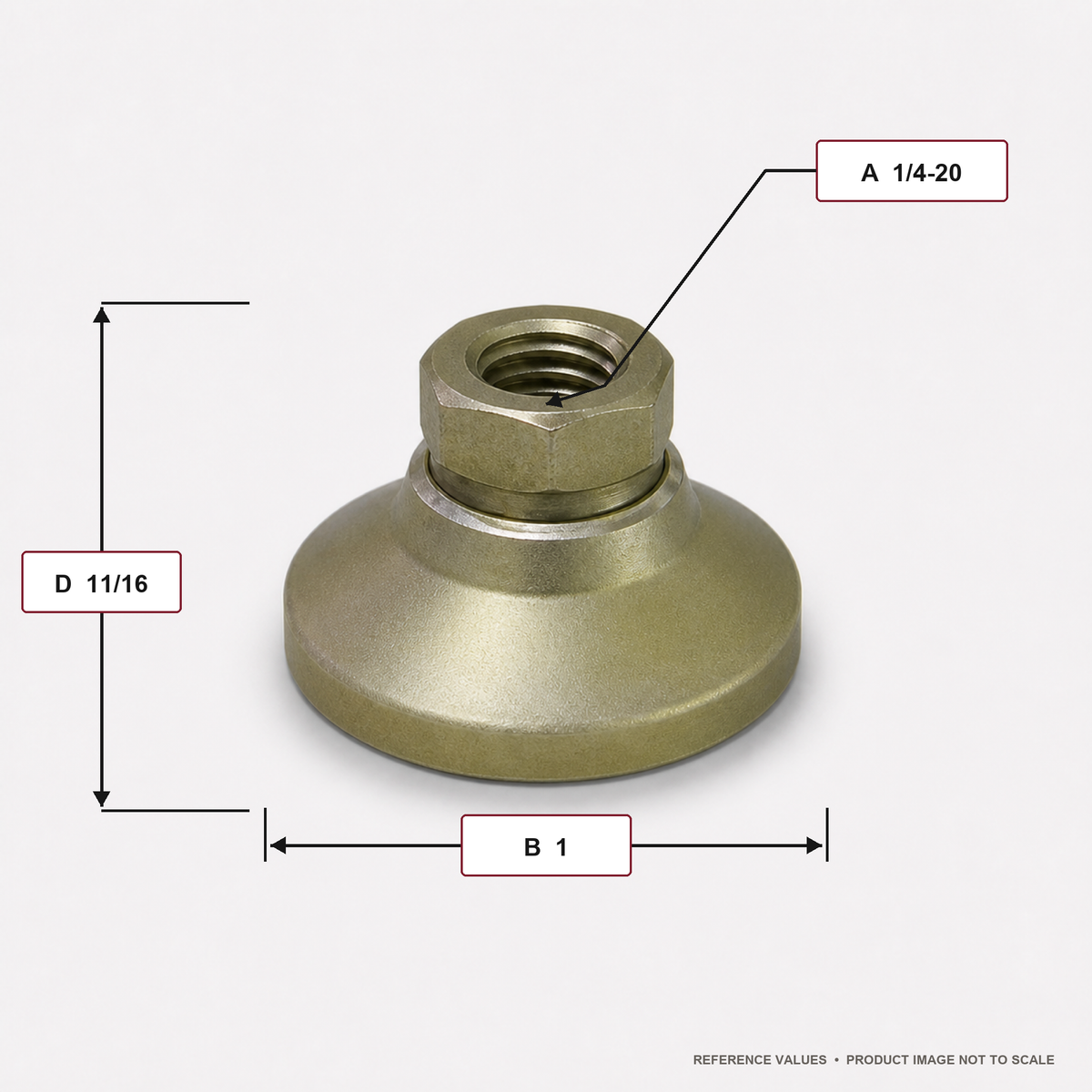

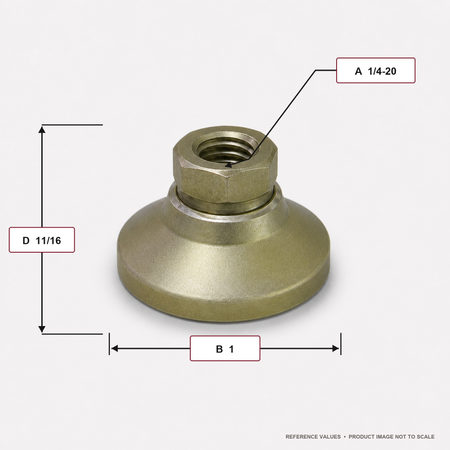

Pick the TSW-0 for the lightest tapped job, a 1-inch swivel base with a 1/4-20 socket that takes whatever short stud your benchtop frame needs, so you set the height instead of the catalog.

A tapped foot this small earns its place on equipment that gets reconfigured: when a light fixture moves to a frame with a different leg depth, you run in a new 1/4-20 rod rather than buy a whole new mount. It also saves a bent stud from condemning the pad, which on a part this small is most of the cost. The 1-inch base still tilts on its swivel seat to seat flat on an uneven bench or floor.

Ideal applications

• Reconfigurable benchtop jig that changes leg depth between setups
• Light enclosure leveled with a custom-cut short stud
• Small fixture where a bent rod would otherwise scrap the foot

Skip the TSW-0 if you want the stud already attached; the BSW-0 ships with a 1/4-20 stud on the same 1-inch base.

Pairs with: a 1/4-20 rod cut to your frame, run into the socket and locked with a jam nut.

Wrong fit? Want a ready stud, or stainless? See the BSW-0 and stainless SSW-0.

Also in this family: TSW-1, TSW-2, and the full Leveling Mounts collection.
