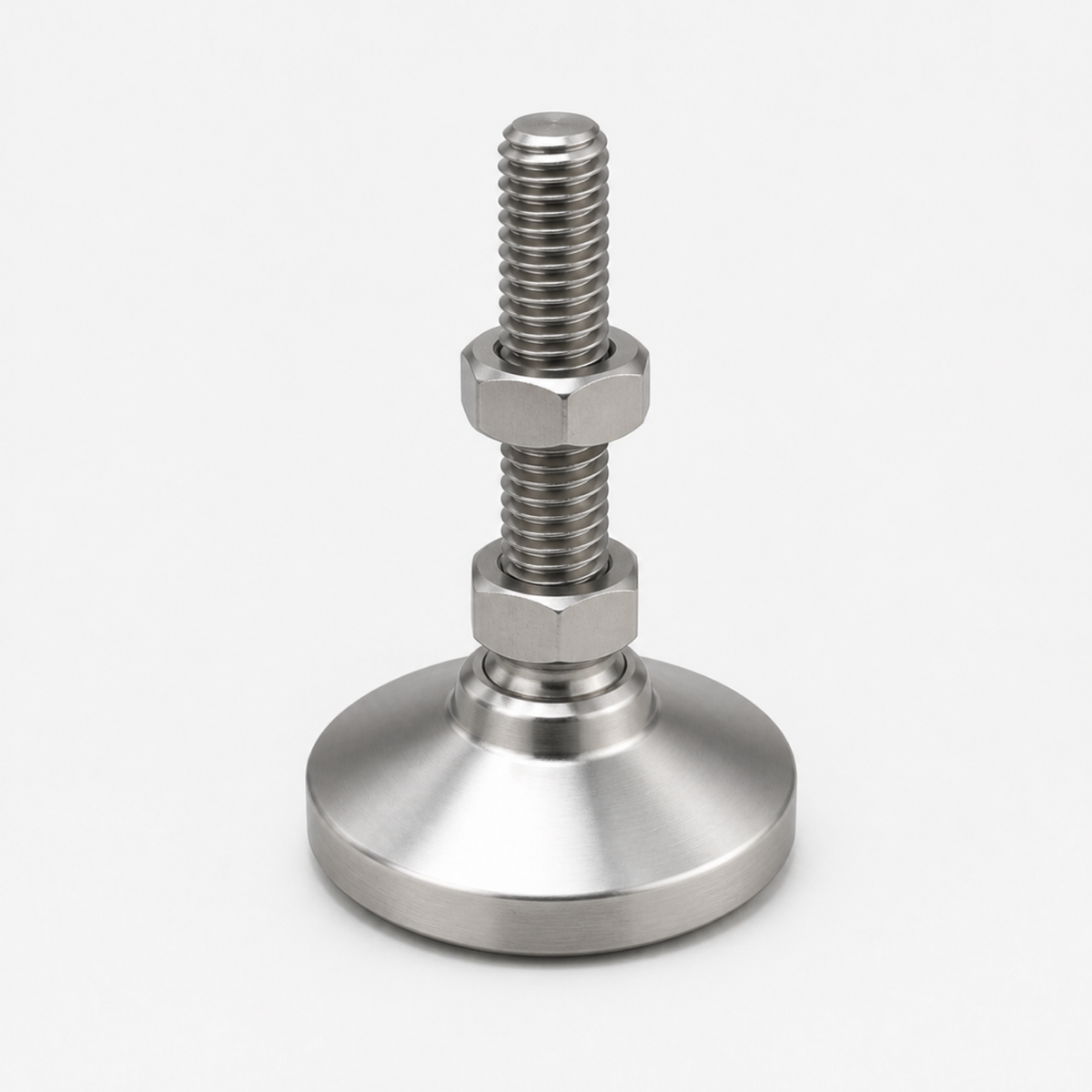

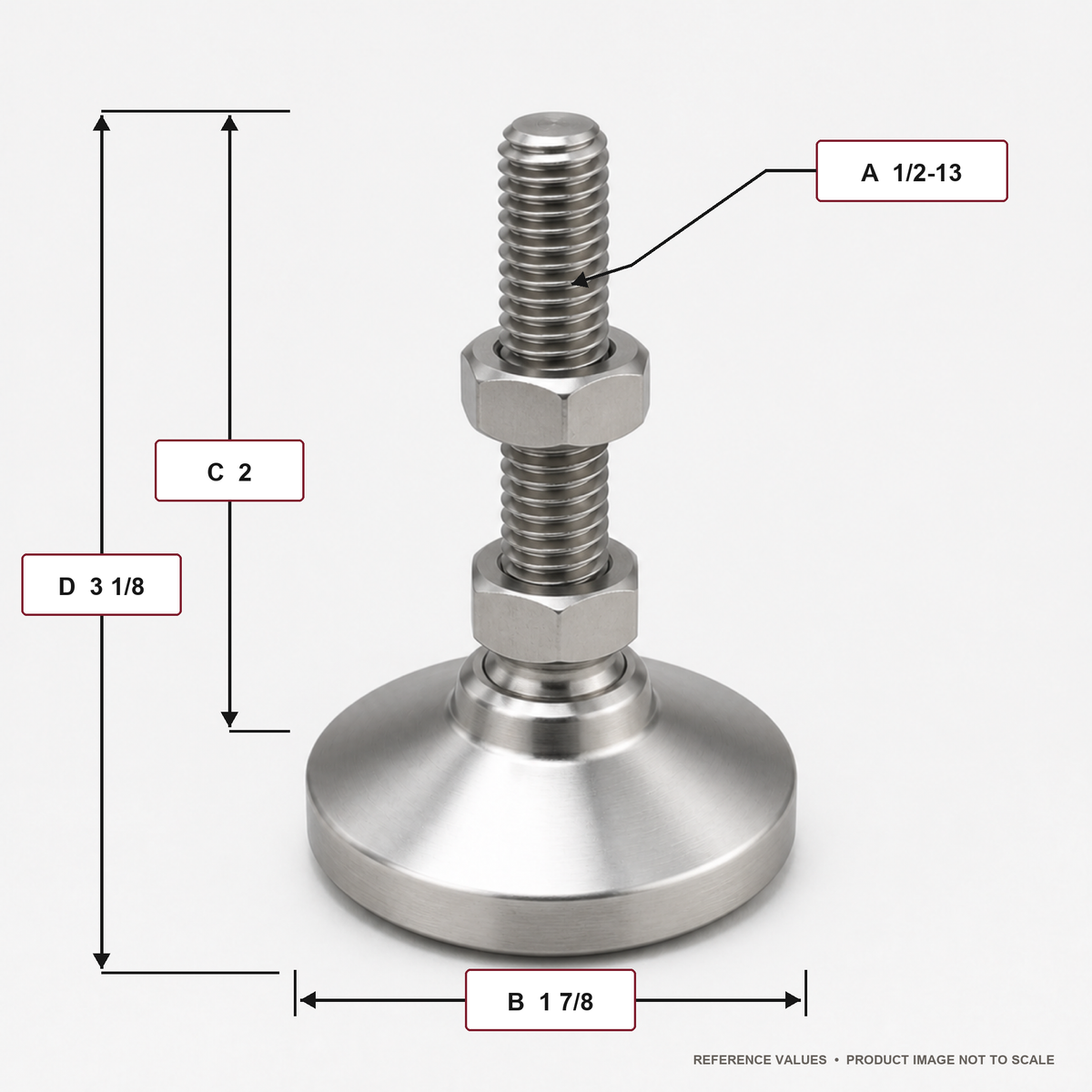

1/2"-13 x 2" Threaded Stainless Steel 1.875" Base Swivel Leveling Mount - SSW-2

About This Leveling Mount - SSW-2

Choose the SSW-2 when a mid-weight machine in a wet or sanitary line needs both a wider 1.875-inch foot and full corrosion resistance, so the leveling hardware lasts as long as the equipment it carries.

The 1/2-13 stud and the larger pad come in Stainless Steel for the same reason the smaller SSW-1 does, but the heavier thread matters here: a sanitary machine that gets scrubbed daily sees its mounts loaded and wetted at once, and a coated stud rusts under the nut where you cannot see it until it locks. The stainless thread stays free, so the foot can be re-leveled after a floor settles without cutting the stud out. The pad still articulates to the floor.

Ideal applications

• Dairy or beverage skid leveled on an epoxy floor washed every shift
• Mid-size filler frame in a high-humidity bottling room
• Stainless equipment cart that must read level after a floor reseal

Skip the SSW-2 in a dry shop where stainless is overkill; the steel BSW-2 shares the 1.875-inch swivel base at a lower cost.

Pairs with: the tube-end TE1-1B, whose 1/2-13 brass socket accepts this stud on a hollow stainless leg.

Wrong fit? Dry environment, or anti-vibration? See the steel BSW-2 and the MM5024B.

Also in this family: SSW-1, BSW-2, and the full Leveling Mounts collection.
