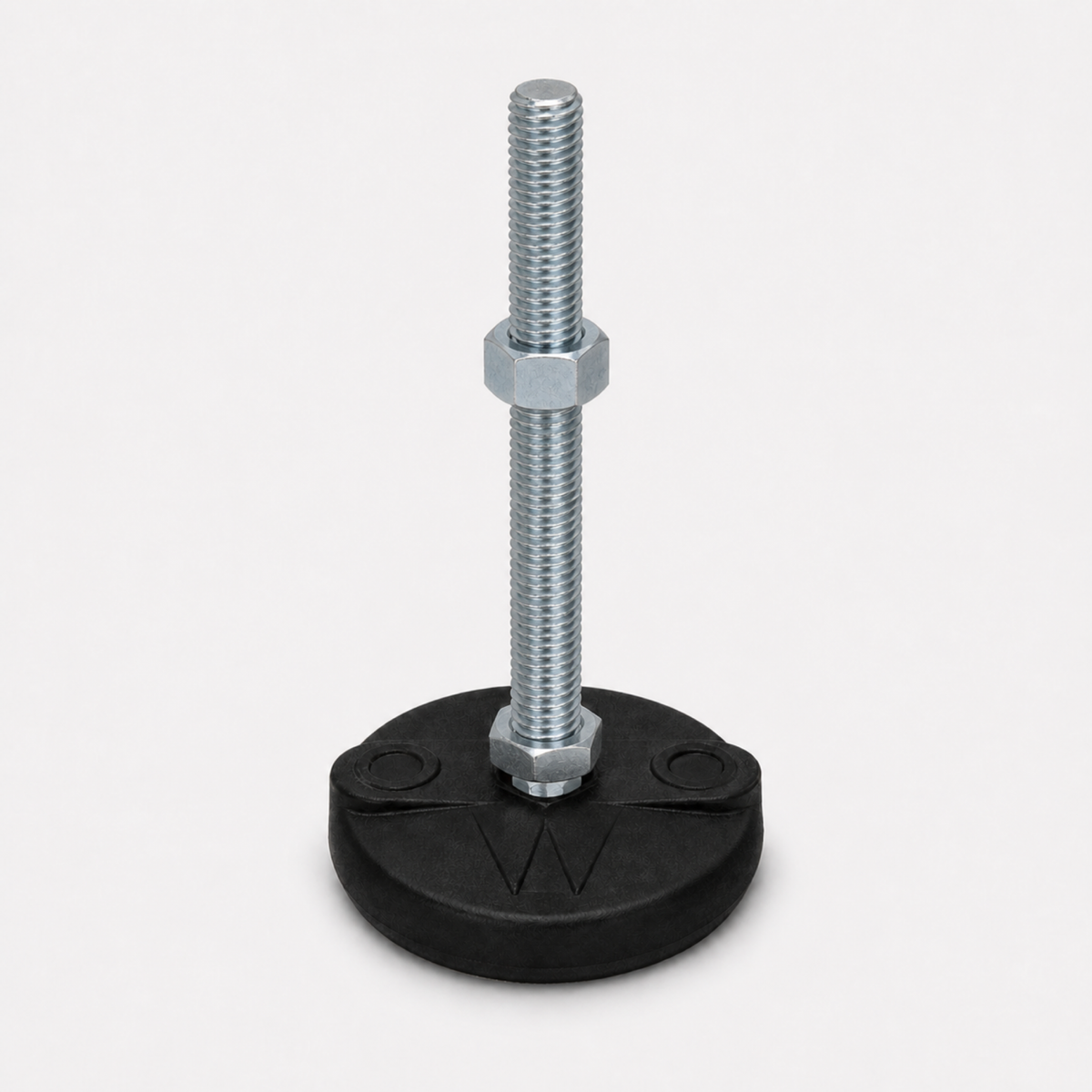

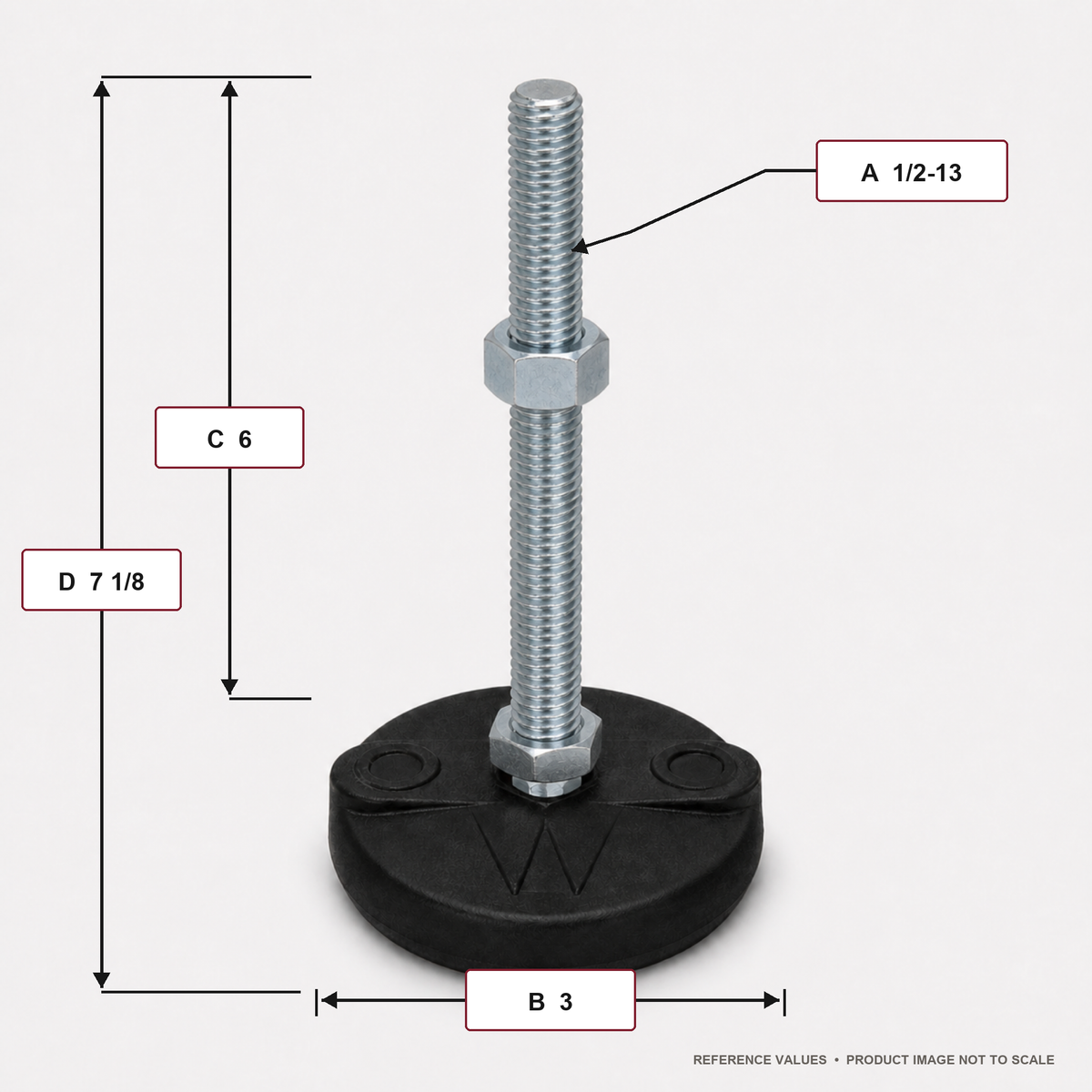

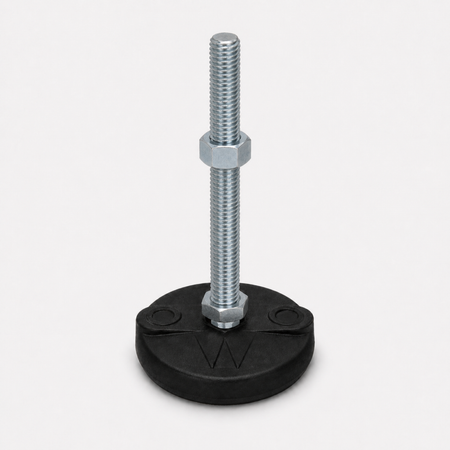

1/2"-13x6" Threaded Stud Steel Leveling Mount with 3" Nylon Base -BNYLB36

About This Leveling Mount - BNYLB36

Choose the BNYLB36 for a tall mid-weight frame on a finished floor, a 3-inch nylon base on a long 1/2-13 x 6 stud that reaches up into a high leg and lands soft on tile or epoxy.

The 6-inch stud is the detail that sets this apart from the shorter nylon mounts: a tall cabinet or rack needs travel to come level over a high spot, and a short stud forces a shim that marks the floor it was meant to protect. Here the long rod does the lifting and the nylon pad spreads the load without scratching sealed concrete or rusting in a damp room. A steel foot dragged across a clean floor gouges it on the first move; nylon does not.

Ideal applications

• Tall stock rack leveled over a high spot on sealed concrete
• Mid-weight cabinet on epoxy needing several inches of reach
• Finished-room frame repositioned and re-leveled without marks

Skip the BNYLB36 if the floor pitches hard under load; a fixed nylon pad edge-loads on a slope, so the swivel BSW-2 seats flatter.

Pairs with: the wider BNYLB46 on the loaded corner of the same tall frame.

Wrong fit? Sloped floor, or a bigger pad? See the swivel BSW-2 and the BNYLB46.

Also in this family: BNYLB46, BNYLC36, and the full Leveling Mounts collection.
