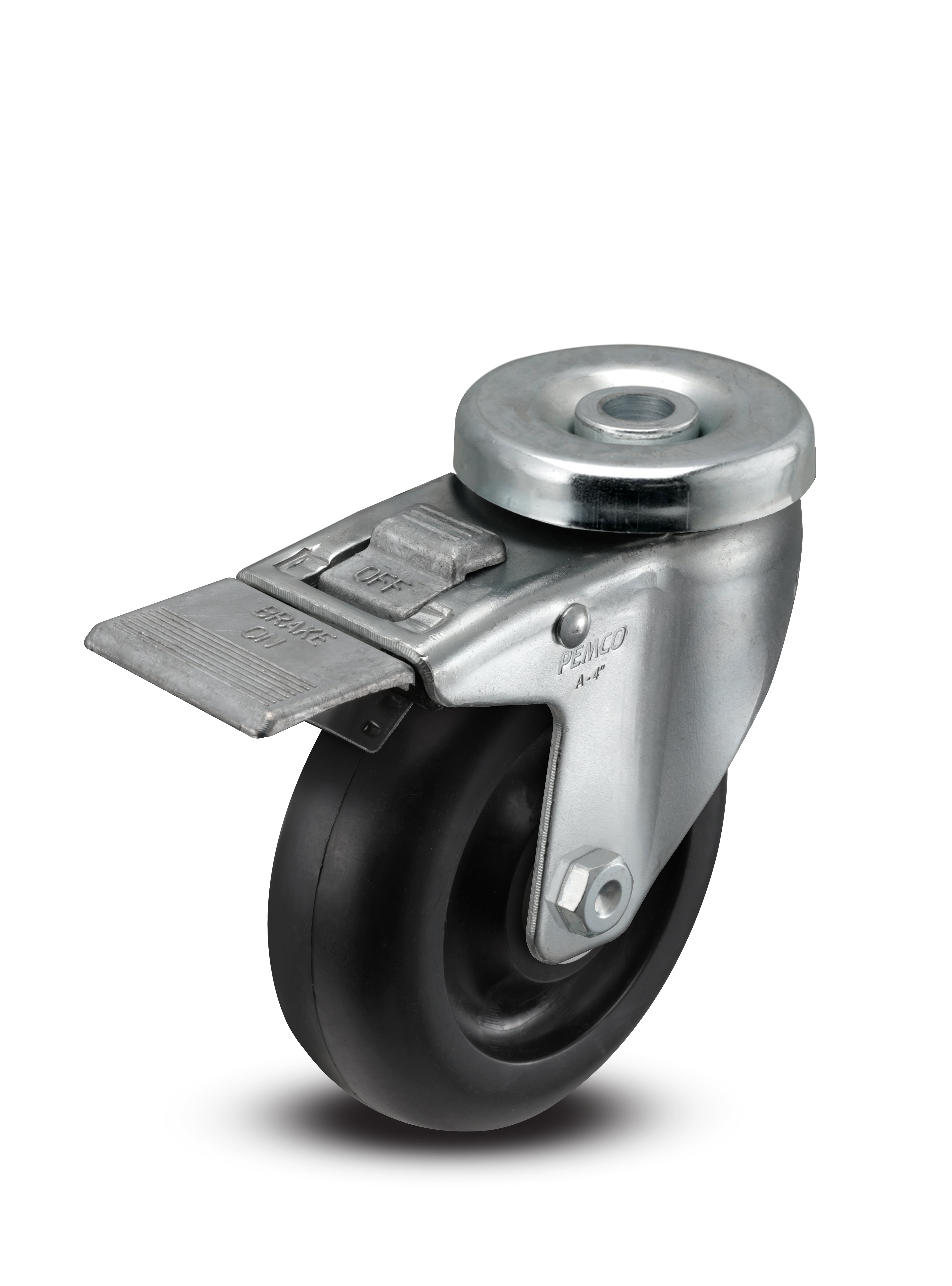

A-line 4" x 1.25" Polyolefin (POD) Wheel Caster With Hollow Kingpin and Total Lock Brake - Part# AS40H1PODTL
Specifications
Dimensions & Mounting
| Wheel Diameter | 4" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 5-1/8" |
| Fastening Type | Hollow Kingpin |
| Fastening Size | 1/2" Hollow Kingpin |
| Swivel Radius | 4.4375 |
Load & Performance
| Load Capacity | 300 lbs |
|---|---|
| Bearing Type | Delrin |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Total Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Pemco A-Line 1 1/4 Inch Wide Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - AS40H1PODTL
Specify this 4-inch A-line swivel for a bolt-through frame where the parked load cannot be allowed to roll or pivot.
The hollow kingpin mounts with a single 1/2-inch bolt through the swivel center, and the total lock pins the wheel and the swivel head together in one pedal action, so a loaded cart can neither creep nor swing once set. The wheel is a hard polyolefin on a polypropylene core that resists moisture from -45 to 180°F, and the Delrin plain bearing runs maintenance-free. It is the total-lock bolt-through corner of the A-line.
Ideal applications
- Bolt-through frames that must lock against roll and pivot
- Single-bolt mounts on carts parked on a grade
- Bolt-through corners locking a hard wheel dead-still
The hard polyolefin tread resists the moisture and cleaning chemicals that swell other wheels, so a locked corner stays serviceable in damp areas. If the swivel can stay free while the wheel is stopped, the side-brake AS40H1PODSB costs less.
Pairs with: plain hollow-kingpin A-line swivels on the rolling bolt holes, these total-lock units opposite.
Wrong fit? Need a non-marking wheel or a threaded mount? See the grey TPU total-lock AS40H1TPUTL and the threaded total-lock AS40T2PODTL.
Also in this family: the grip-ring total-lock AS40G1PODTL, or the full Pemco collection.
