MFG PART: D4.08109.839 HTBLK SS WB29

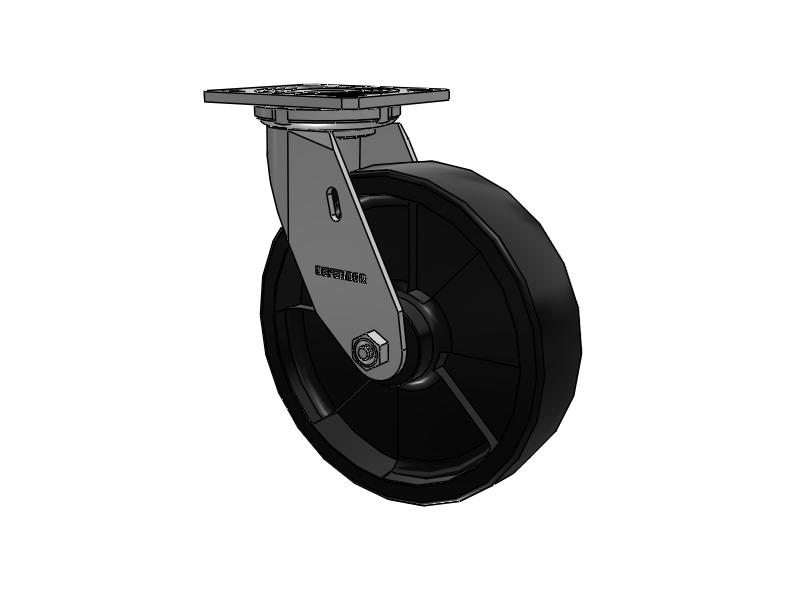

8"X2" Stainless Steel Top Plate Swivel Caster with Hi-Temp Glass Filled Nylon Wheel - D4.08109.839 HTBLK SS WB29
1250 lbper caster
Regular Price
$217.42
Nylon Wheel
8" x 2" Wide Wheel
1250 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 8" |
|---|---|
| Tread Width | 2" |
| Mount Height | 9-1/2" |
| Fastening Type | Top Plate |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" to 3" x 3" |
| Swivel Radius | 6.375 |
Load & Performance
| Load Capacity | 1250 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -20°F |
| Wheel Durometer | 75(±5) Shore D |
Materials & Finish
| Wheel Material | Nylon |
|---|---|
| Wheel Color | Brown |
| Wheel Core | Nylon |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.08109.839 HTBLK SS WB29
Pick this 8-inch Defender D4 swivel when a warm chemical-area cart steers, carries heavy weight slowly, and clears the biggest obstacles.
The swivel head steers the front of the cart, with a 6.375-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings at a slow, controlled pace. The hi-temp glass-filled nylon wheel is a glass-fiber-reinforced tread built for strength and heat resistance, standing up to chemicals and moisture. The tallest 8-inch wheel clears the widest cracks and big obstacles, on a stainless steel frame for corrosion. Glass-filled nylon is hard with no cushioning and can mark a soft floor. It serves across the listed range from -20 to 180°F.
Ideal applications
- Warm 8-inch chemical-area carts steering under heavy slow loads
- Heat-grade nylon up front where elastomer would soften
- Maneuverable rigs that clear big obstacles on hard flooring
Verify the temperature rating and wheel color, confirm the roller-bearing load class, and allow for the 6.375-inch swivel radius before ordering.
Pairs with: the 8-inch hi-temp glass-filled nylon precision-ball swivel D4.08109.835 HTBLK on faster lead corners.
Wrong fit? Need steam-grade sterilization service? See the 8-inch Retort roller swivel D4.08109.839 RW in the Colson collection.
Also in this family: the 8-inch polyolefin roller swivel D4.08109.839, or the full Colson collection.
