MFG PART: D4.06109.559 SS WB29

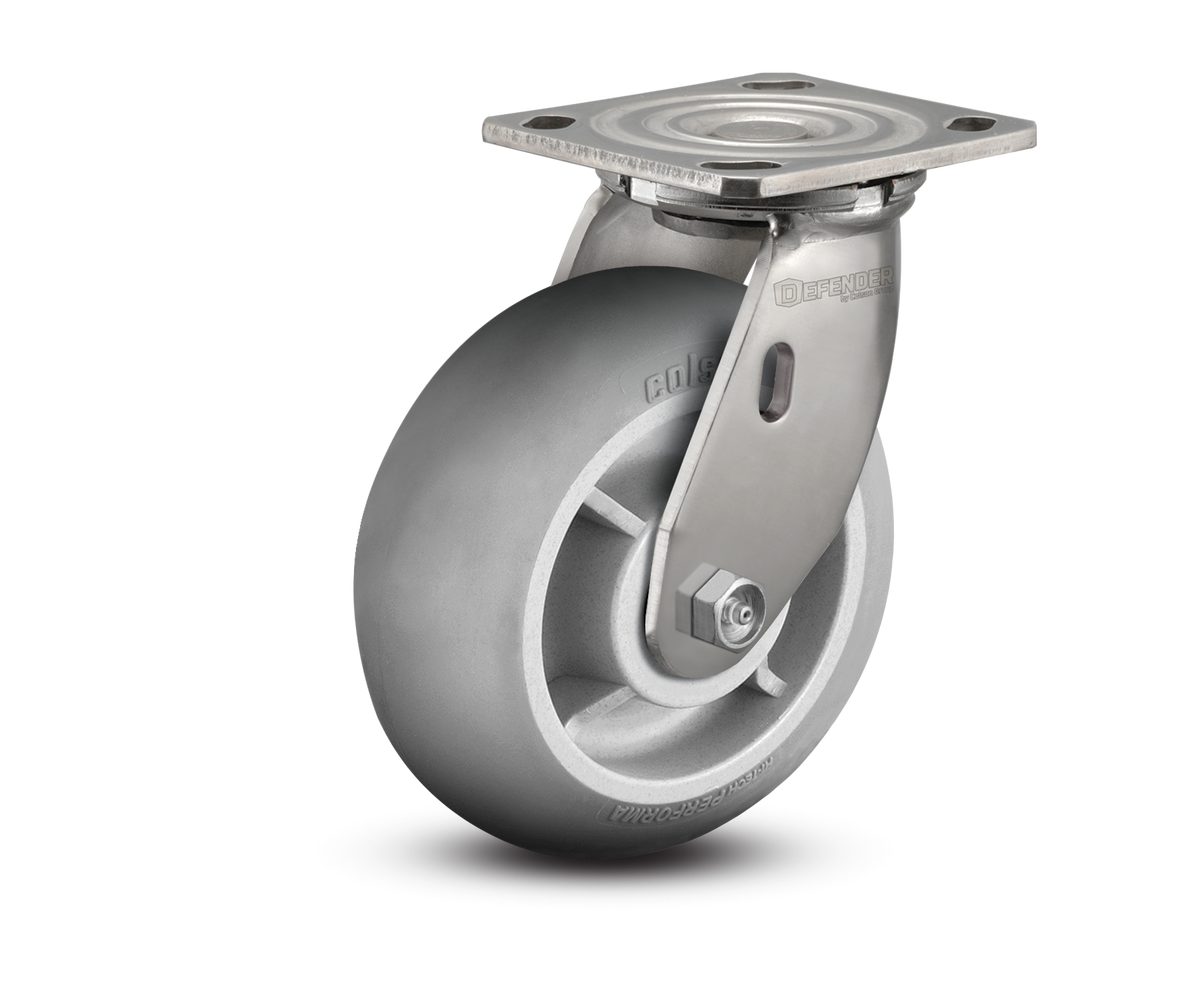

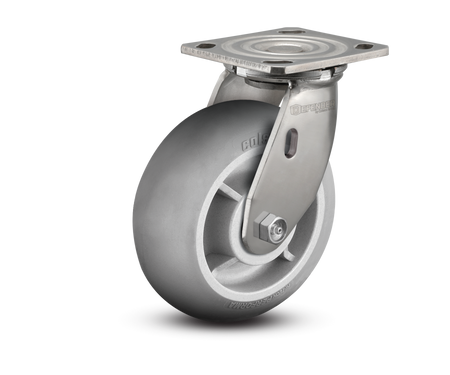

6"X2" Stainless Steel Top Plate Swivel Caster with Rubber (Round) Wheel - D4.06109.559 SS WB29
450 lbper caster
Regular Price
$175.19
Rubber Wheel
6" x 2" Wide Wheel
450 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" to 3" x 3" |
| Swivel Radius | 4.875 |
Load & Performance
| Load Capacity | 450 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Core | Polyolefin |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.06109.559 SS WB29
Pick this 6-inch Defender D4 swivel when a quiet, non-marking cart steers while carrying near the top of the soft-rubber range, moved slowly over thresholds.
The swivel head steers the front of the cart, with a 4.875-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings at a slow pace. The round-tread Performa wheel swivels easily and rolls quietly while protecting finished floors. The taller 6-inch wheel clears door tracks and joints with the least effort, on a stainless steel frame for corrosion. Even with the roller bearing, soft rubber tops out below a hard wheel, so this is for noise-sensitive areas maneuvering a heavier cart. It serves from -45 to 180°F.
Ideal applications
- Quiet 6-inch carts steering near the soft-rubber load ceiling over thresholds
- Noise-sensitive stainless rigs maneuvering heavier loads slowly
- Easy-swiveling front corners on finished floors
Keep the load within the soft-rubber roller class, allow for the 4.875-inch swivel radius, before ordering.
Pairs with: the 6-inch Performa round precision-ball swivel D4.06109.555 on faster lead corners.
Wrong fit? Need to drain static? See the 6-inch conductive round-tread roller swivel D4.06109.559 COND in the Colson collection.
Also in this family: the 6-inch Performa round Delrin swivel D4.06109.551, or the full Colson collection.
3D CAD Model
