MFG PART: D4.06109.559 COND SS WB29

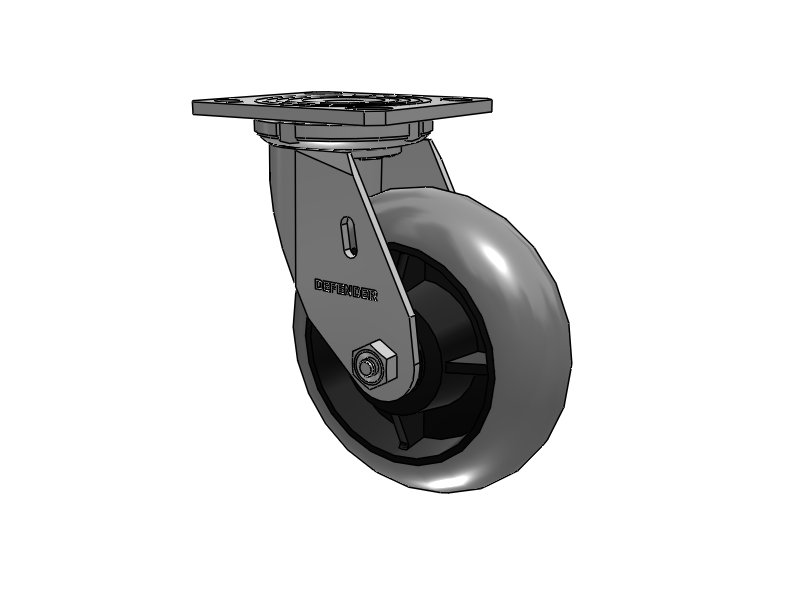

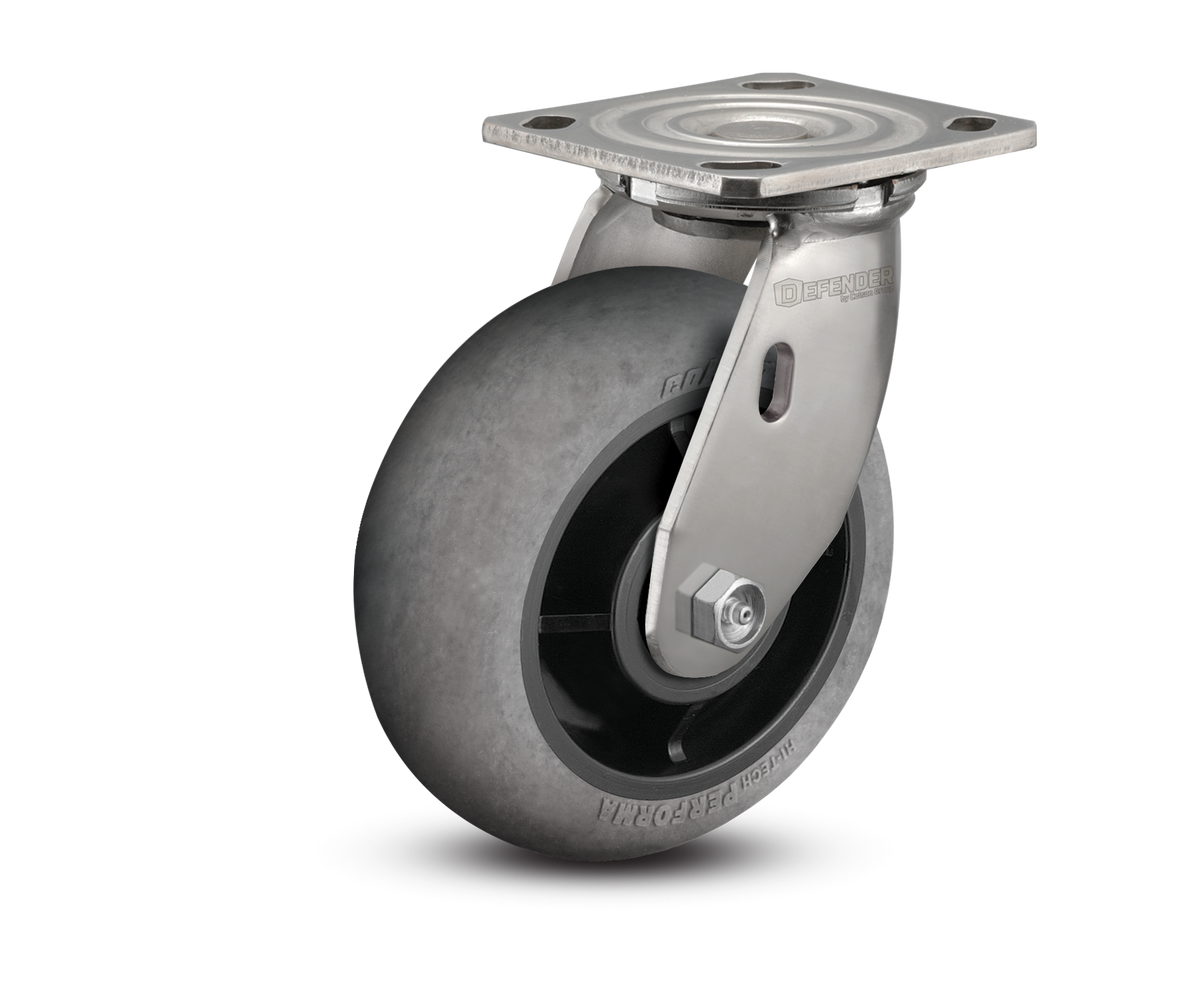

6"X2" Stainless Steel Top Plate Swivel Caster with Performa Rubber (Round) Wheel - D4.06109.559 COND SS WB29
450 lbper caster
Regular Price
$226.12
Rubber Wheel
6" x 2" Wide Wheel
450 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/2" |
| Fastening Type | Top Plate |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" to 3" x 3" |
| Swivel Radius | 4.875 |
Load & Performance
| Load Capacity | 450 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Core | Polyolefin |
| Finish | Stainless Steel |
| Caster Type | Swivel |
| Brand / Series | Colson Defender D4 Series Stainless Steel Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - D4.06109.559 COND SS WB29
Reach for this 6-inch Defender D4 swivel when a heavier cart must steer, drain static, and clear thresholds, moved slowly.
The swivel head steers the front of the cart, with a 4.875-inch swivel radius to allow, while the roller bearing gives that swivel the highest capacity of the three bearings at a slow pace. The conductive round-tread Performa wheel carries static charge from the cart down through the caster to ground, protecting electronics and reducing spark risk near solvents or dust. Its round profile keeps rolling resistance low and the soft rubber rolls quietly, though the conductive compound can mark a light surface. The taller 6-inch wheel clears door tracks and joints easily, on a stainless steel frame for corrosion. It serves from -45 to 180°F.
Ideal applications
- Heavier 6-inch ESD-sensitive carts that steer and drain static slowly
- Flammable or solvent bays needing low-resistance static control under load
- Round-tread front corners that clear thresholds under heavier loads
Verify the conductive resistance spec and that the wheel and swivel both carry the path to ground, confirm the roller load class, before ordering.
Pairs with: matching conductive Defender D4 casters on all four corners so the loaded cart stays grounded, from the Colson collection.
Wrong fit? No static concern, just a quiet non-marking swivel? See the 6-inch grey round-tread roller swivel D4.06109.559 in the Colson collection.
Also in this family: the 6-inch conductive round-tread precision-ball swivel D4.06109.555 COND, or the full Colson collection.
