MFG PART: 2.02256.445 COND MTG27 BRK1

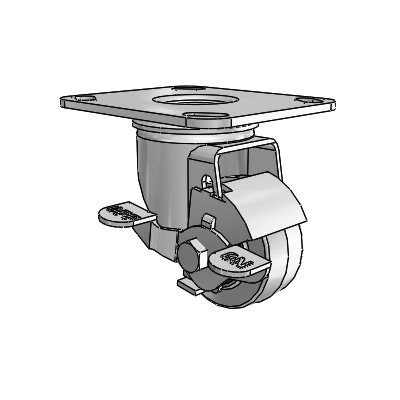

2.5" Performa Rubber 2 Series Swivel Caster - 2.02256.445 COND MTG27 BRK1
125 lbper caster
Regular Price
$33.88
Rubber Wheel
2-1/2" x 1-1/4" Wide Wheel
125 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 4-3/8" x 3-3/4" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 125 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 75(±5) Shore A |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02256.445 COND MTG27 BRK1
Specify this 2.5-inch conductive Performa rubber swivel with the top lock brake on the larger 4-3/8 by 3-3/4 inch plate for the parking corner of a heavier static-safe cart, the caster that drains charge, spreads the load, and locks the wheel still.
The conductive tread bleeds static off the cart so it cannot spark, the 4-3/8 by 3-3/4 inch plate steadies a heavier frame, and the top lock brake stops the wheel so a parked cart holds at a station. The wheel keeps the soft, quiet, non-marking Performa ride on a ball bearing. At 2.5 inches it keeps a low deck. It is the static-safe braked wide-plate corner for a heavier solvent-area cart.
Ideal applications
- Parking corner of a heavier solvent cart, 4-3/8 x 3-3/4 plate, ESD floor
- Static-safe wide-plate rig locked still in a flammable bay
- Heavier frame that drains charge and holds on a spread load
Skip the conductive brake corner where static is not a concern; the standard braked MTG27 plate 33MB25V02-03 locks the wheel for ordinary duty.
Pairs with: the conductive plain MTG27 plate 33MB25VT-03 on the rolling corners of a static-safe cart.
Wrong fit? No static concern, or no brake? See the standard braked MTG27 33MB25V02-03 and the conductive plain MTG27 33MB25VT-03.
Also in this family: the conductive plain MTG27 plate 33MB25VT-03 and conductive braked base plate 31MB25V02T-03, or the 2 Series caster collection.
3D CAD Model
