MFG PART: 2.02256.445 BRK1

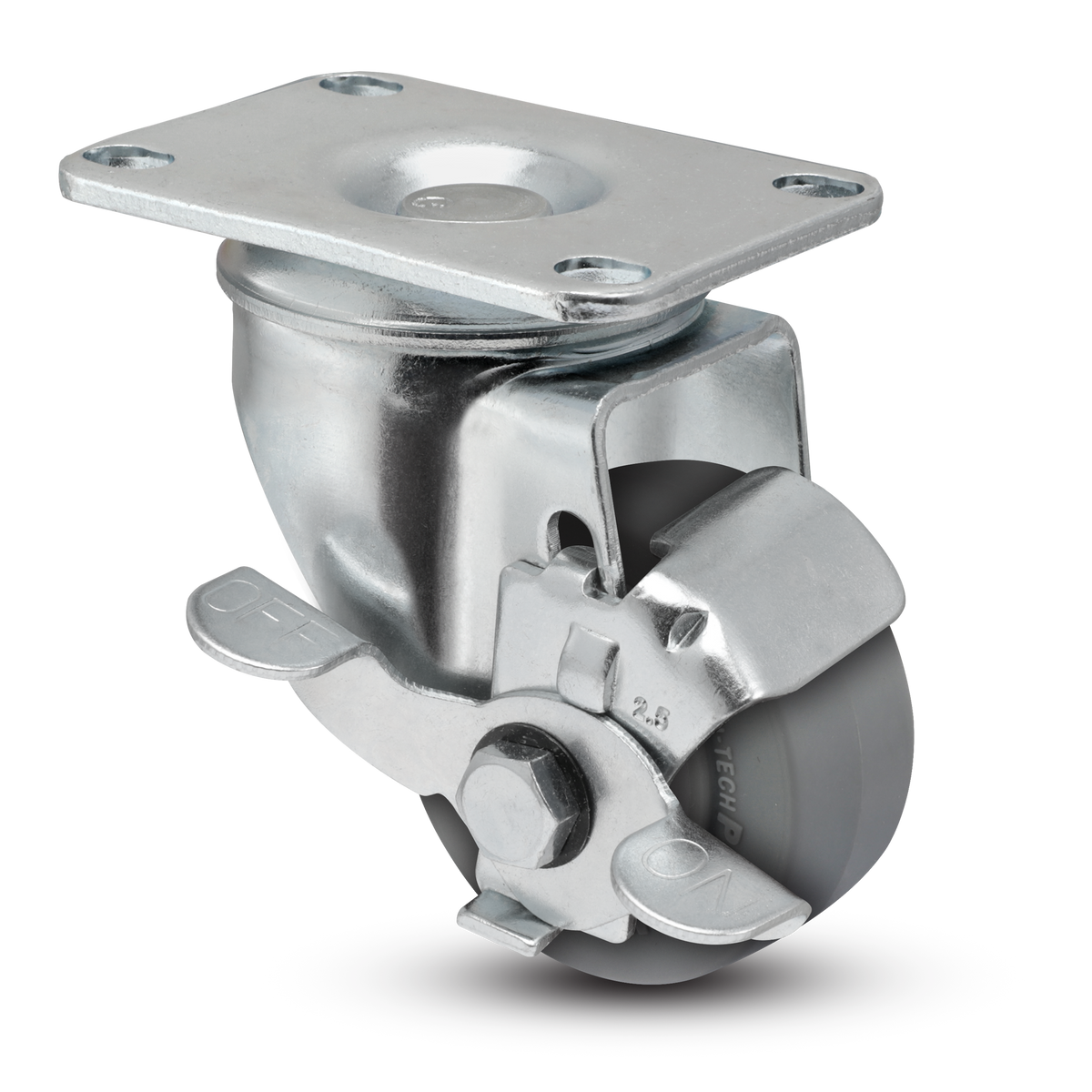

2.5" Performa Rubber 2 Series Swivel Caster - 2.02256.445 BRK1
140 lbper caster
Regular Price
$23.65
Rubber Wheel
2-1/2" x 1-1/4" Wide Wheel
140 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Top Plate Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-7/8" |
| Fastening Type | Top Plate |
| Fastening Size | 3-5/8" x 2-1/2" |
| Bolt Hole Spacing | 1-3/4" x 2-13/16" to 3-1/16" |
| Mounting Bolt Size | 5/16" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 140 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 65(±5) Shore A |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Product Details
About This Caster - 2.02256.445 BRK1
Specify this 2.5-inch Performa rubber swivel with the top lock brake on the standard 3-5/8 by 2-1/2 inch plate for the parking corner of a busy institutional cart, the soft non-marking caster that bolts to the common pattern, rolls smooth, and locks the wheel still.
The standard 2 Series plate drops onto the common drilled footprint, the ball bearing carries the busy duty, and the top lock brake stops the wheel so the cart holds at a bedside or station. The soft Grey Performa rubber tread runs near-silent and protects finished floors. At 2.5 inches it keeps a low deck. It is the quiet high-traffic braked corner for a standard-plate institutional cart.
Ideal applications
- Parking corner of a busy standard-plate cart, finished corridor
- Quiet high-traffic rig locked at a bedside or nursing station
- Bolt-on cart that holds still and rolls quiet all shift
Skip the brake on corners that only roll and steer; the plain standard-plate ball version 31MB25V-03 turns freely at a lower cost.
Pairs with: the plain standard-plate ball version 31MB25V-03 on the rolling corners.
Wrong fit? No brake, different pattern, or static control? See the plain base plate 31MB25V-03 and the conductive braked base plate 31MB25V02T-03.
Also in this family: the conductive braked base plate 31MB25V02T-03 and braked MTG27 plate 33MB25V02-03, or the 2 Series caster collection.
