MFG PART: 2.02254.55 MTG12 BRK1

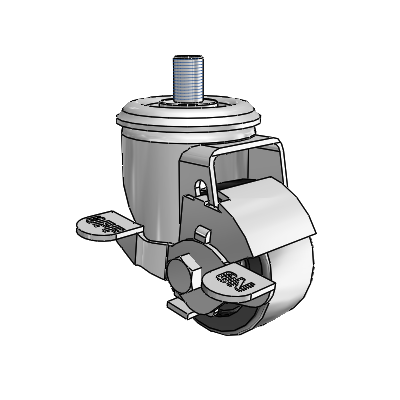

2.5" Polyolefin 2 Series Swivel Caster - 2.02254.55 MTG12 BRK1
200 lbper caster
Regular Price
$23.62
Polyolefin Wheel
2-1/2" x 1-1/4" Wide Wheel
200 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Threaded Stem Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-3/4" |
| Fastening Type | Threaded Stem |
| Fastening Size | 1/2"-20 UNF x 3/4" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 200 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 70(±5) Shore D |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Polyolefin |
|---|---|
| Wheel Color | Black |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02254.55 MTG12 BRK1
Specify this 2.5-inch polyolefin swivel with the top lock brake and fine 1/2-20 stem for the parking corner of a busy seafood cart on a fine-tapped leg, the no-rust caster that grips against shake, ignores the brine, and locks the wheel still.
The fine 1/2-20 thread resists backing out under the vibration of ice or pump gear, the molded polyolefin wheel shrugs off the brine and wash, the ball bearing carries the busy duty, and the top lock brake stops the wheel so the cart holds on a wet floor. At 2.5 inches it keeps a low deck. It is the no-rust vibration-resistant braked corner for a fine-tapped leg.
Ideal applications
- Parking corner of a busy seafood cart, fine 1/2-20 leg, brine floor
- No-rust rig locked at a packing station under vibration
- High-traffic fine-thread cart that holds still without rusting
Skip the brake on corners that only roll and steer; the plain fine MTG12 ball polyolefin 31GB25X12F-03 turns freely at a lower cost.
Pairs with: the plain fine MTG12 ball polyolefin 31GB25X12F-03 on the rolling corners.
Wrong fit? No brake, or a coarse thread? See the plain MTG12 31GB25X12F-03 and the braked MTG11 ball 41GB25X4102-03.
Also in this family: the braked 5/8-11 MTG13 ball 31GB25X5802-03 and plain fine MTG12 31GB25X12F-03, or the 2 Series caster collection.
3D CAD Model
