MFG PART: 2.02254.445 COND MTG12 BRK1

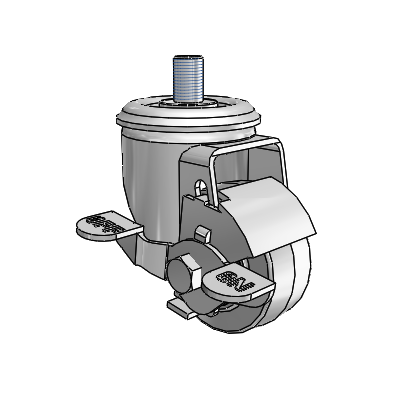

2.5" Performa Rubber 2 Series Swivel Caster - 2.02254.445 COND MTG12 BRK1
125 lbper caster
Regular Price
$34.82
Rubber Wheel
2-1/2" x 1-1/4" Wide Wheel
125 lb Load Capacity
Top Lock Brake
Ball Bearing Bearing
Threaded Stem Mount
Specifications
Dimensions & Mounting
| Wheel Diameter | 2-1/2" |
|---|---|
| Tread Width | 1-1/4" |
| Mount Height | 3-3/4" |
| Fastening Type | Threaded Stem |
| Fastening Size | 1/2"-20 UNF x 3/4" |
| Swivel Radius | 3.8125 |
Load & Performance
| Load Capacity | 125 lbs |
|---|---|
| Bearing Type | Ball Bearing |
| Max Temperature | 180°F |
| Min Temperature | -45°F |
| Wheel Durometer | 75(±5) Shore A |
| Brake Type | Top Lock Brake |
Materials & Finish
| Wheel Material | Rubber |
|---|---|
| Wheel Color | Grey |
| Wheel Core | Polyolefin |
| Finish | Zinc Plated |
| Caster Type | Swivel Caster with Brake |
| Brand / Series | Colson 2 Series Casters |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 2.02254.445 COND MTG12 BRK1
Specify this 2.5-inch conductive Performa rubber swivel with the top lock brake and fine 1/2-20 stem for the parking corner of a vibrating solvent-room cart, the caster that prevents a static spark, grips against shake, and locks the wheel still.
The conductive tread bleeds charge off the cart so it cannot spark in a solvent area, the fine 1/2-20 thread resists backing out under vibration, and the top lock brake stops the wheel so the cart holds at a station. The wheel keeps the quiet, non-marking Performa ride on a ball bearing. At 2.5 inches it keeps a low deck. It is the static-safe vibration-resistant braked corner for a solvent-room cart on a fine-tapped leg.
Ideal applications
- Parking corner of a vibrating solvent cart, fine 1/2-20 leg
- Static-safe rig locked at a flammable-area mixing station
- Fine-thread cart that drains charge and holds still under shake
Skip the conductive brake corner where static is not a concern; the standard braked MTG12 31MH25X12F02-03 locks the wheel for ordinary duty.
Pairs with: the conductive plain fine MTG12 31MB25X12FT-03 on the rolling corners of a static-safe cart.
Wrong fit? No static concern, or coarse thread? See the conductive plain MTG12 31MB25X12FT-03 and the conductive braked MTG11 31MB25X4102T-03.
Also in this family: the conductive braked MTG13 31MB25X5802T-03 and conductive plain MTG12 31MB25X12FT-03, or the 2 Series caster collection.
