10" Polyurethane Swivel Caster - 410PY10501SFBB

SKU: 55HE103V03-02 (410)
• Polyurethane Wheel
• 10" x 3" Wide Wheel
• 3000.0 Load Capacity
Regular price $364.75

Volume discount are available for bulk or frequent orders

30 Days Returns

Returned product is subject to a restocking fee.

Albion 410 Series are manufactured in St. Joseph, Michigan, and are constructed from high quality heat-treated AISI 1045" laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure – the leading cause of caster failure. 410 Series feature larger top plates and greater weight capacities than our 310 series.

If purchasing for a power-towed application, please consult factory prior to ordering to ensure selection supports your towing requirements.

Need help finding the right caster? Contact Caster Central today!

Availablity: Usually Ships Within 7-14 Days

Bearing Type: Roller

Product Brand: Albion

Caster Type: Swivel

Core Info: Cast Iron

CC Part: 55HE103V03-02 (410)

Fastening Size: 5.25" x 7.25"

Fastening Type: Top Plate

Product Finish: Zinc

Load Capacity: 3000.0

Mfg Part: 410PY10501SFBB

Mounting Bolt Size: 1/2"

Mount Height: 12.5

Product Series: 410 Contender Kingpinless

Temperature Max: 180.0

Temperature Min: -40.0

Tread Info: Polyurethane

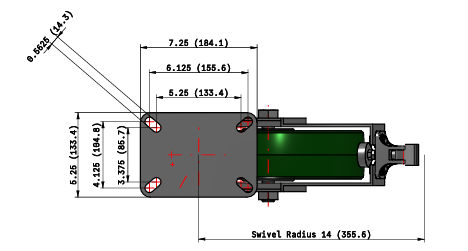

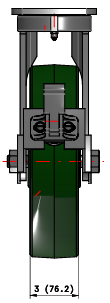

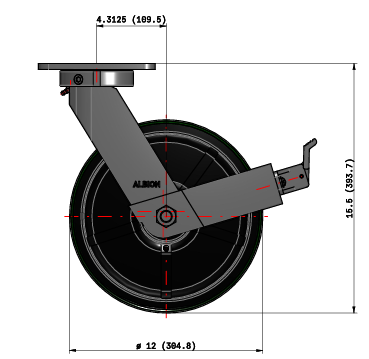

View Datasheet and CAD Model
