MFG PART: 170AN04228R
4"x2" Heavy-Duty Rigid Caster with AN- Round Polyurethane Wheel (Aluminum Core) - 170AN04228R
800 lbper caster
Regular Price
$61.85
Polyurethane Wheel
4" x 2" Wide Wheel
800 lb Load Capacity
Precision Ball Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting

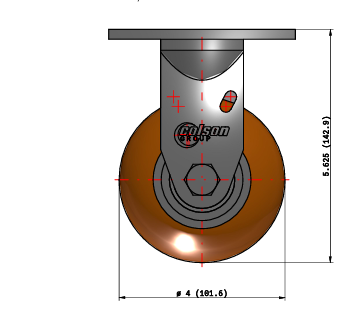

| Wheel Diameter | 4" |
|---|---|
| Tread Width | 2" |
| Mount Height | 5-5/8" |
| Fastening Type | Top Plate |

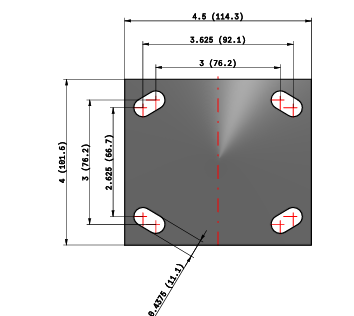

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 800 lbs |
|---|---|
| Bearing Type | Precision Ball |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Orange |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion Empire 170 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 170AN04228R
Set this 4-inch Empire 170 rigid on a fixed corner of a dough trough, platform truck, or tooling fixture that has to carry weight without marking the floor.
The orange round-profile polyurethane tread is non-marking, tough, and easy-rolling, on a lightweight aluminum core that will not corrode, which suits bakery, tow-line, and scrap-handling duty. It is built kingpinless with no central kingpin to fail under shock. As a rigid caster it tracks straight on the fixed corners, runs on a precision ball bearing, bolts on a 4 by 4-1/2-inch top plate at a 5-5/8-inch mount height, and holds from -40 to 180°F.
Ideal applications
- 4-inch Empire 170 PU rigid on a dough trough or platform truck
- Non-marking orange tread on an aluminum core tracking straight
- Kingpinless rigid on a 4 by 4-1/2 plate for tow-line carts
For a steering corner instead of a fixed one, the 170AN04228SFBB swivels and adds a brake.
Pairs with: matching Empire 170 swivels on the steering corners and this rigid on the fixed corners.
Wrong fit? Need a swivel, a brake, or a lock? See the braked swivel 170AN04228SFBB and the swivel-lock 170AN04228SL.
Also in this family: the 5-inch Empire 170 rigid 170AN05228R, or the full Albion collection.
