Regular Price
$23.67
Phenolic Wheel
6" x 2" Wide Wheel
1200 lb Load Capacity
Roller Bearing
Top Plate Mount
250°F Max Temp
Specifications

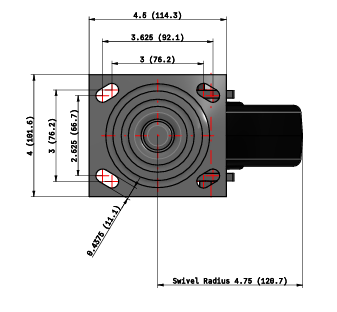

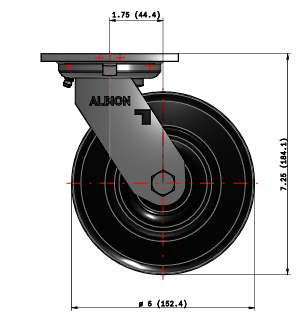

Dimensions & Mounting
| Wheel Diameter | 6" |
|---|---|
| Tread Width | 2" |
| Mount Height | 7-1/4" |
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1200 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 250°F |
| Min Temperature | -65°F |
| Wheel Durometer | Rockwell 102 E |
Materials & Finish
| Wheel Material | Phenolic |
|---|---|
| Wheel Color | Black |
| Wheel Core | Phenolic |
| Finish | Zinc Plated |
| Caster Type | Swivel |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16TM06201S
Choose this 6-inch phenolic swivel for a loaded shop cart that has to roll over rough oily floor on the steering corners, where the bigger wheel clears thresholds and the hard tread carries high load.
The 6-inch diameter rolls over floor breaks and debris a 5-inch wheel stalls on, and the hard molded phenolic carries a high load without deforming while shrugging off oil and grease, rated to 250°F. The roller bearing carries the weight under the swivel. It is the larger phenolic swivel of the 16 Series for heavier shop carts.
Ideal applications
- Loaded machine-shop carts crossing thresholds on oily floor, to 250°F
- Heavy assembly rigs on rough hard concrete, multi-shift
- Shop carts that need high load and obstacle clearance, single to multi-shift
Skip phenolic if the floor is finished or noise-sensitive; the hard tread marks and clatters, so a polyurethane 16EG or rubber 16 Series wheel rolls cleaner and quieter.
Pairs with: the 5-inch phenolic rigid 16TM05201R or a matching 6-inch rigid on the back corners.
Wrong fit? Finished floors, or a brake? See the braked 16TM05201SFBA and polyurethane wheels in the Albion caster collection.
Also in this family: 5-inch phenolic rigid 16TM05201R, braked 16TM05201SFBA, or the full Albion caster collection.
3D CAD Model
