Regular Price
$29.97
Polyurethane Wheel
6" x 2" Wide Wheel
1100 lb Load Capacity
Roller Bearing
Top Plate Mount
180°F Max Temp
Specifications
Dimensions & Mounting

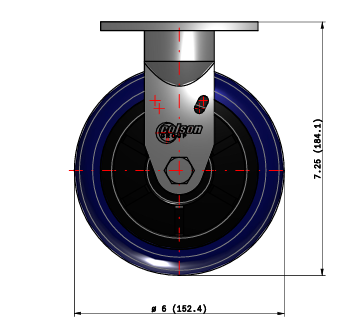

| Wheel Diameter | 6" |
|---|---|

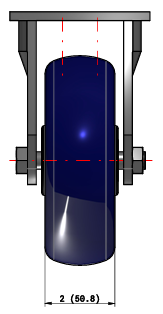

| Tread Width | 2" |
| Mount Height | 7-1/4" |
| Fastening Type | Top Plate |

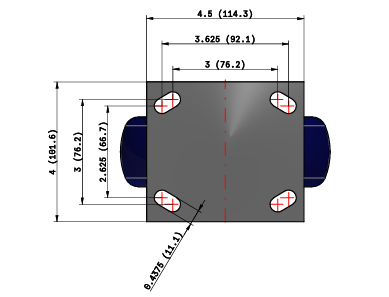

| Fastening Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3" to 3" x 3-5/8" |
| Mounting Bolt Size | 3/8" |
Load & Performance
| Load Capacity | 1100 lbs |
|---|---|
| Bearing Type | Roller |
| Max Temperature | 180°F |
| Min Temperature | -40°F |
| Wheel Durometer | 95 Shore A |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Wheel Color | Blue |
| Wheel Core | Polypropylene |
| Finish | Zinc Plated |
| Caster Type | Rigid |
| Brand / Series | Albion 16 Medium Heavy Duty |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 16EG06201R
Set this 6-inch 16 Series rigid on the back corners of a heavier clean-floor cart that crosses thresholds, the blue polyurethane caster that carries more than rubber and bridges a thicker seam without a mark.
Mold-on rubber sets flat under a heavy load and a hard wheel scuffs a finished floor; the 16 Series EG polyurethane tread on a polypropylene core carries a higher load without flat-spotting and stays non-marking, while the taller diameter bridges a thicker threshold than a 4-inch. The roller bearing carries the load at a walk, the rigid fork holds the line, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Back corners of heavier carts crossing thresholds
- Clean floors where a hard wheel would scuff
- Straight tracking with 6-inch clearance under load
Skip the polyurethane wheel if the floor runs near heat over 180°F or carries constant point loads; a cast iron 16CA06201R takes the heat where polyurethane gives.
Pairs with: the 16EG06201S swivel up front for a steer-and-track cart.
Wrong fit? Need a swivel, or more heat? See the 16EG06201S swivel and the cast iron 16CA06201R.
Also in this family: the 5-inch 16EG05201R, or the full Albion caster collection.
3D CAD Model
