About This Caster - 16EG05201S
Choose this 5-inch 16 Series swivel for the front of a heavier cart on a clean floor, the blue polyurethane caster that carries more than rubber and steers without leaving a scuff.

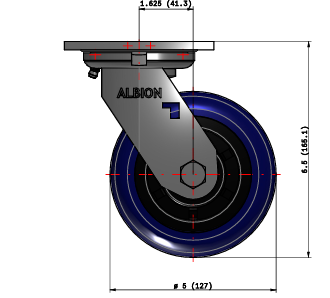

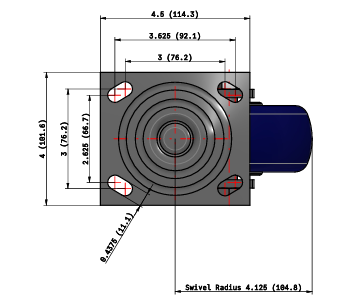

Mold-on rubber sets flat under a heavy load and carries less; the 16 Series EG polyurethane tread on a polypropylene core carries a higher load without flat-spotting and stays non-marking and quiet. The roller bearing carries the load at a walk, the 5-inch diameter clears a thicker seam than a 4-inch, and the 4 by 4-1/2 top plate bolts to a flat deck. USA-made for fast shipping.
Ideal applications
- Front of heavier carts on clean sealed floors
- Loads that flat-spot rubber but need a mark-free surface
- Quiet non-marking steer in clean manufacturing
Skip the polyurethane wheel if the floor runs near heat over 180°F or carries constant point loads; a cast iron 16CA05201S takes the heat where polyurethane gives.
Pairs with: the 16EG05201R rigid on the back corners.
Wrong fit? Want a brake, or more heat? See the 16EG05201SFBA face brake and the cast iron 16CA05201S.
Also in this family: the 6-inch 16EG06201S, or the full Albion caster collection.
View Datasheet and CAD Model
