MFG PART: 28AN08228S01

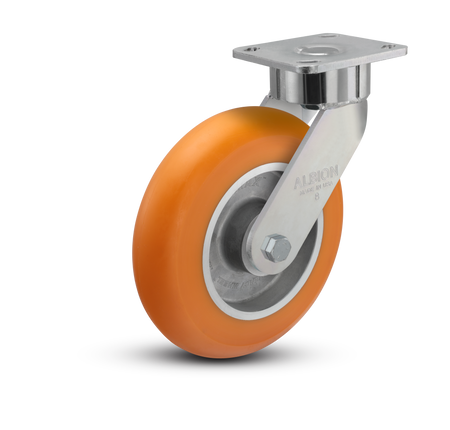

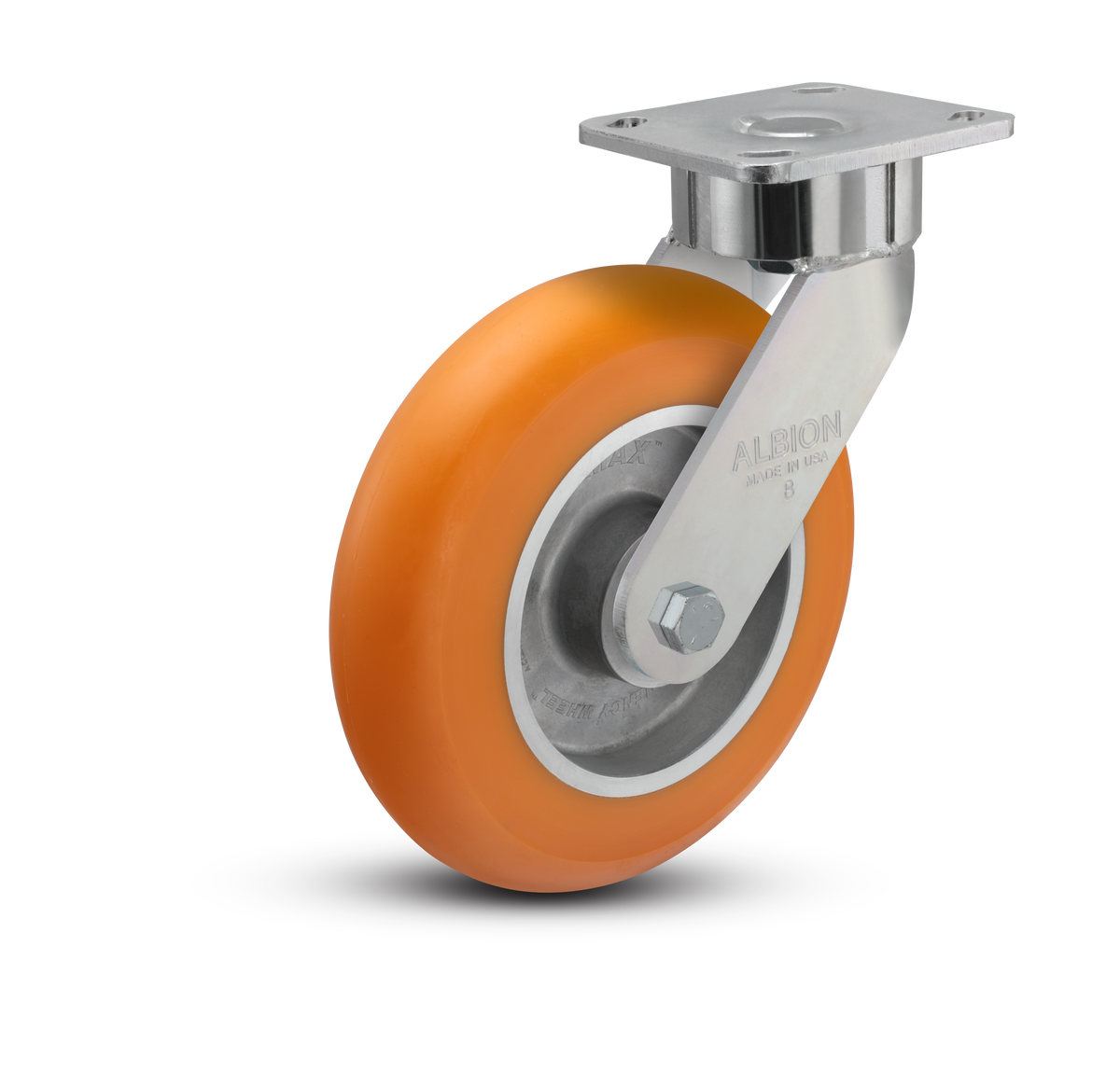

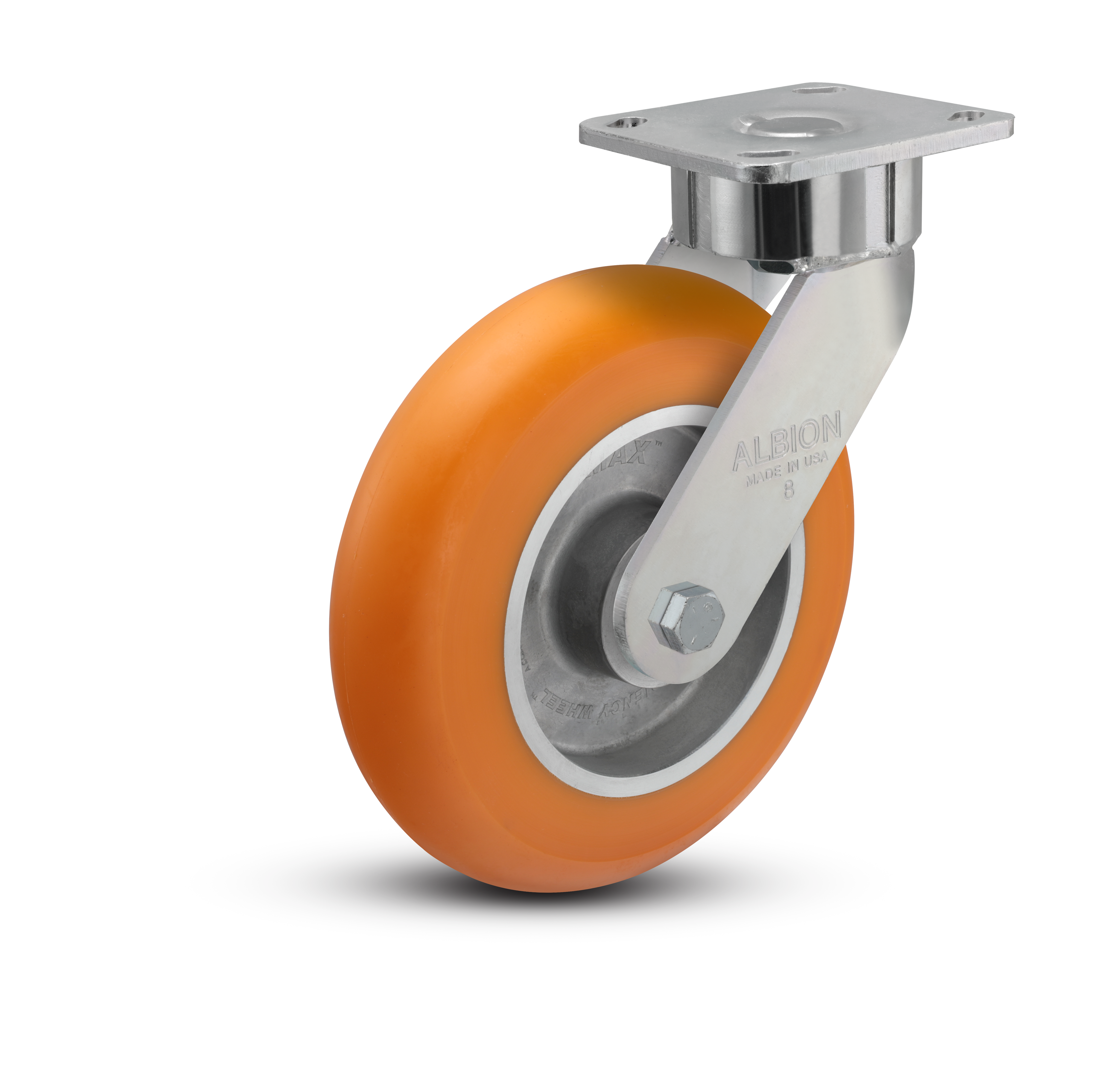

28AN08228S01 - 8" x 2" Polyurethane Swivel Caster - Albion 28 Series
1500 lbper caster
Regular Price
$195.59
Polyurethane Wheel
1500 lb Load Capacity
Top Plate Mount
-40°F to +180°F
7.5" Swivel Radius
9-1/2 Mount Height
Specifications
Dimensions & Mounting
| Mount Height | 9-1/2" |
|---|---|
| Fastening Type | Top Plate |
| Fastening Size | 4" x 4-1/2" |
| Swivel Radius | 7.5" |
Load & Performance
| Load Capacity | 1500 lbs |
|---|---|
| Temperature Range | -40°F to +180°F |
Materials & Finish
| Wheel Material | Polyurethane |
|---|---|
| Brand / Series | Albion 28 Series |
Delivery: Estimated delivery time: 2-3 days
Returns: 30 Days Returns
Volume discounts are available for bulk or frequent orders
Available Configurations
Product Details
About This Caster - 28AN08228S01
Put this 8-inch 28 Series swivel on the steering corners of a heavy operator-pushed cart that travels long over debris and has to steer with little effort.
The 28 Series extended lead trails the wheel farther behind the swivel axis, so even an 8-inch wheel steers with less push and pull force and tracks straighter, which keeps operators moving heavy carts without the strain a standard caster adds. The 8-inch diameter rolls over chips and floor joints, and the wheel is polyurethane in the orange compound, non-marking and holding from -40 to 180°F. It is the plain swivel, for corners that steer without a brake.
Ideal applications
- Heavy operator-pushed carts steered with low effort on 8-inch wheels
- Extended-lead steering that cuts push and pull force on a big wheel
- 8-inch orange polyurethane crossing debris, non-marking
For the tracking corners of the same cart, the 8-inch rigid 28AN08228R01 holds the line under the push.
Pairs with: the 8-inch rigid 28AN08228R01 on the back corners so the front steers and the rear tracks.
Wrong fit? Need a smaller wheel or a brake? See the 6-inch orange swivel 28AN06228S and the 6-inch face-brake 28AN06228SFBK.
Also in this family: the 6-inch maroon swivel 28AX06228S, or the full kingpinless caster collection.
