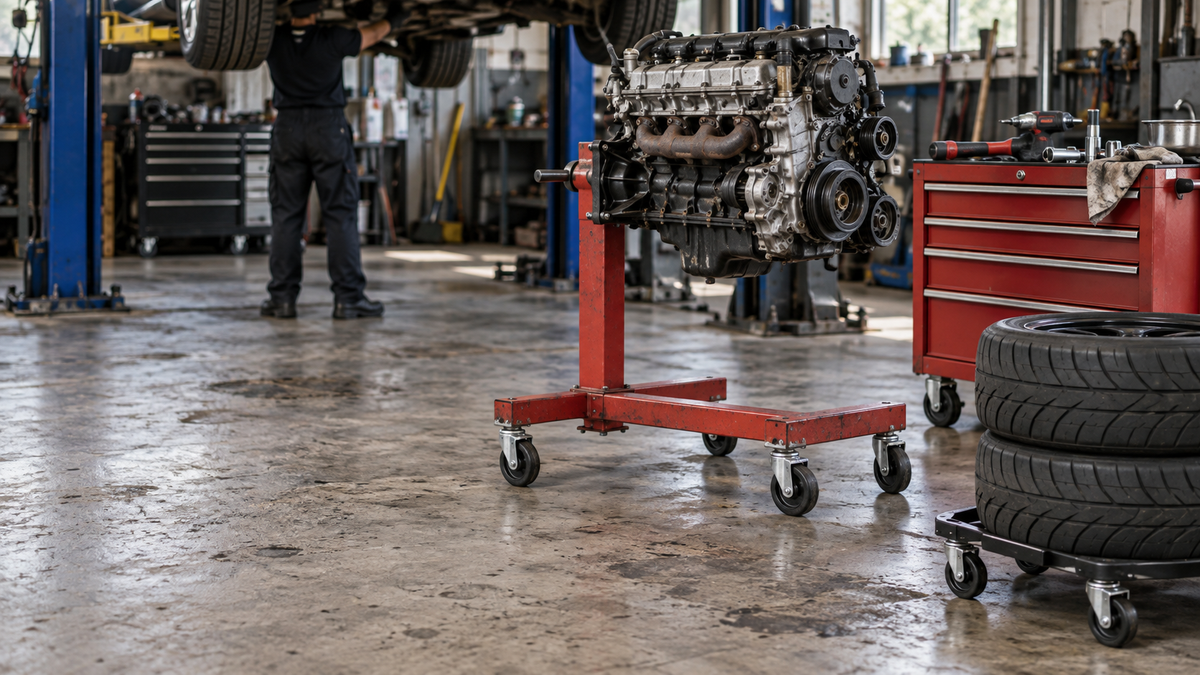

A shop floor is one of the hardest environments a caster ever rolls across. There's dropped oil and coolant, brake dust, steel shavings, cracks in the concrete, and equipment that gets shoved, kicked, and loaded well past what anybody planned for. The caster that works fine under a tool cart in a clean warehouse can seize, flat-spot, or chew up your floor inside a year of real shop use.
The right caster for each piece of shop equipment is not a guess. It comes down to three things: the load on each wheel, the surface it rolls on, and the chemicals it sits in. Get those right and a caster lasts for years. Get them wrong and you're buying new wheels every few months.
What makes a good automotive shop caster
Automotive shop casters have to survive conditions most casters never see. Standard rubber wheels look like a safe, quiet choice until oil and solvents get to them. Petroleum breaks rubber down, so a rubber wheel parked in an oil puddle swells, softens, and cracks. That's why oil-resistant materials do so much better on a shop floor. Three material families cover almost every job in a bay:
- Polyurethane rolls quiet, protects the floor, carries real weight, and shrugs off most shop oils and solvents. It's the default for anything that lives on smooth concrete or an epoxy-coated floor.
- Phenolic is a hard, oil-resistant material rated for very high loads and short bursts of heat. It's the go-to when the load is brutal and floor marking isn't a concern.
- Pneumatic and semi-pneumatic rubber cushion the ride over cracks, drains, and thresholds, which matters the moment you roll equipment between bays or out to the lot.
You can see the full range of shop-ready builds in the automotive casters collection, which groups wheels and mounts specifically for automotive work.
Engine stand casters: load and stability come first
An engine stand is the least forgiving item in the shop. A small-block on a stand runs 400 to 600 lbs combined, and a big diesel block can push past 1,000 lbs, all of it high and tippy. Engine stand casters have to carry that load and keep it planted while a tech rotates the block.
Start with the load math. Take the total weight, divide it by three wheels instead of four, and add at least 20 percent. Dividing by three is the ICWM (Institute of Caster and Wheel Manufacturers) three-caster rule, which accounts for uneven concrete where one caster can momentarily carry no weight while the other three hold everything. For a 900 lb loaded stand, that's 300 lbs per caster, or 360 lbs each with the safety margin.
For that kind of weight on a smooth floor, heavy-duty polyurethane casters balance capacity, quiet rolling, and floor protection. When the stand almost never moves and marking the floor doesn't matter, phenolic wheels give you more raw capacity for the money. A larger diameter helps too, rolling over a shavings pile or an expansion joint instead of stopping dead against it.
Tool cart and service cart casters: quiet, floor-friendly rolling
Tool carts and parts carts move constantly and roll right past customers. Here the priorities flip. You want quiet, easy rolling and zero floor marking more than maximum load, since a loaded roll-around cart is usually 200 to 500 lbs, not 1,000.
Non-marking polyurethane wheels in the 4 to 5 inch range are the sweet spot. They roll light, they don't screech across sealed concrete, and they hold up to the oil a tech tracks around. Look for at least one caster with a total-lock brake that stops both the wheel and the swivel, so a loaded cart doesn't drift while someone leans into it. The service cart casters collection is built around this use case.
Tire dolly and equipment casters: rolling over cracks and thresholds
Tire dollies, floor jacks, and equipment that moves between bays face a different enemy: the floor itself. Drains, cracks, thresholds, and the transition from concrete to asphalt will stop a small hard wheel cold and bang the load around.
This is where cushioned wheels earn their place. Pneumatic and semi-pneumatic wheels absorb the shock of an uneven surface, protecting both the equipment and whatever's stacked on the dolly. The trade-off is lower load capacity than a solid wheel and, for true pneumatic, the need to check air pressure. For most tire and equipment carts a larger semi-pneumatic wheel is the practical pick, and the pneumatic wheels collection covers the common sizes.
The oil, coolant, and solvent problem
Every material choice above assumes one thing: the wheel is going to sit in fluids. Standard rubber and economy plastics don't belong on a shop floor for that reason. If your rubber wheels are cracking or getting gummy, oil is almost certainly the cause, and the fix is a switch to polyurethane or phenolic. Sealed precision bearings help too, keeping grit and fluid out of the raceway that would otherwise grind a caster down in a season.
Quick load math before you buy
Before you order, run the numbers on your heaviest loaded piece of equipment. Weigh or estimate the equipment plus its maximum load, divide by three, and add 20 to 40 percent depending on how rough the floor is and how often the load gets dropped on rather than set down. If you want worked examples, our guide to caster load capacity calculations covers the math for every equipment type.
A caster that fails on a shop floor isn't just a $30 to $150 part to replace. It's the floor gouge, the dropped block, and the downtime while a bay sits blocked. A few extra dollars per wheel on the right material is the cheapest insurance in the building.
Frequently asked questions
What size casters are best for automotive shop equipment?
Bigger is almost always better on a shop floor. A 4 to 5 inch wheel handles most tool and service carts, while engine stands and heavy equipment benefit from 6 to 8 inch wheels. Larger diameters roll over cracks, drains, and debris that stop smaller wheels, and they lower the effort it takes to get a heavy load moving.
Are rubber casters okay for an auto shop?
Not for most shop-floor use. Petroleum products break standard rubber down, so wheels parked in oil or solvent swell and crack over time. Polyurethane gives you the quiet, floor-friendly roll of rubber with real oil resistance, which is why it's the standard recommendation for automotive shops.
How much weight can engine stand casters hold?
Match the caster rating to your heaviest loaded stand, then add margin. Divide the total loaded weight by three wheels, not four, then add 20 to 40 percent. A 900 lb loaded stand works out to roughly 360 lbs per caster with margin. Heavy-duty polyurethane and phenolic wheels both hit that range.
Polyurethane or phenolic wheels for a shop?
Polyurethane protects the floor and rolls quiet. Phenolic carries more raw load but marks floors and runs harder. Use polyurethane for carts and rolling equipment on sealed or epoxy floors, and reserve phenolic for very heavy, rarely-moved loads where floor marking isn't a concern.
